GPT-9601 GW instek Safety Testers (Hipot Test) Economical Safety Tester

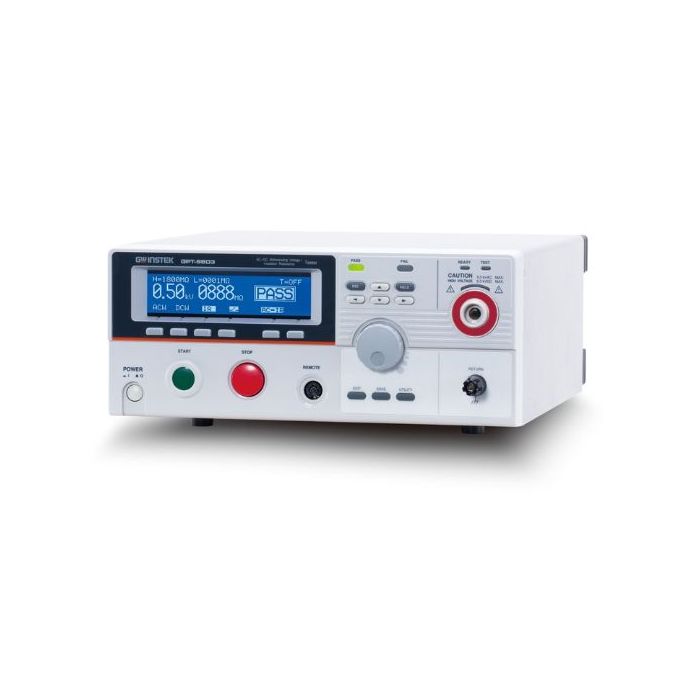

Details of GW INSTEK Electrical Safety Tester (Safety Testers (Hipot Test)) Model GPT-9601 Economical Safety Tester

The GW INSTEK Electrical Safety Tester (Safety Testers (Hipot Test)) Model GPT-9601 Economical Safety Tester is a voltage tester that meets safety standards such as IEC, EN, UL, CSA, GB, JIS. It can test AC voltage and comes with a high-efficiency PWM amplifier.

Technical Data of GW INSTEK Electrical Safety Tester (Safety Testers (Hipot Test)) Model GPT-9601 Economical Safety Tester

• 0.10KV to 5.00KV (AC withstanding)
• 240 x 48 Ice blue dot matrix LCD, high efficiency and high stability output
• Auto W-I or I-W mode, ARC detection, light design and easy to operation
• True RMS current measurement, safety interlock function, simply AUTO mode
• Zero crossing turn-on operation protects DUT from impact of surge voltage output
• PWM amplifier to enhance the power efficiency and reliable testing
• Automatically switching input source for universal input voltage
• Remote terminal and signal I/O interface
• AC 100V-120V/220V-240V ±10%, 50/60Hz AC power source, 400VA power consumption
• Dimension 330mm (W) x 148mm (H) x 385mm(D)
• Weight 9Kg
