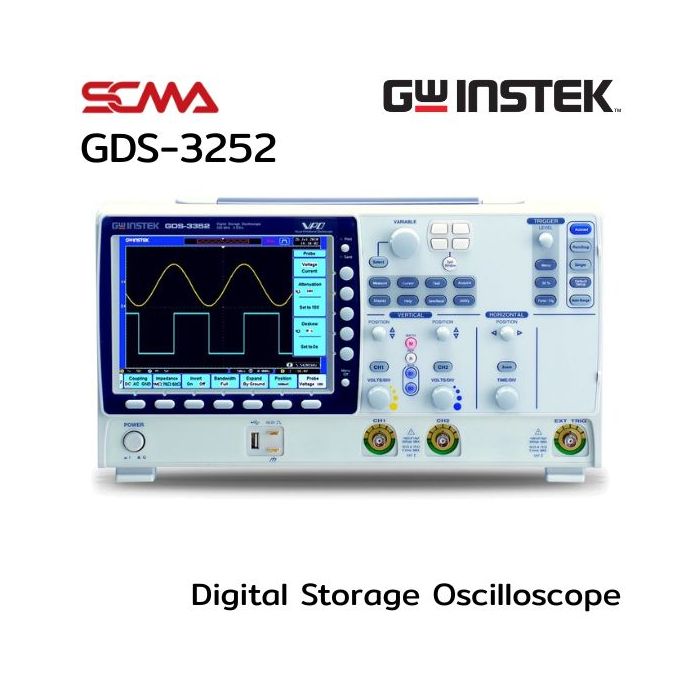

GDS-3252 GW instek Digital Storage Oscilloscope Digital Storage Oscilloscopes

Details GDS-3252 GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Digital Storage Oscilloscopes

GDS-3252 GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Digital Storage Oscilloscopes for measuring signals that can be displayed clearly on an 8-inch color screen. It supports independent settings to ensure efficient use and offers up to 25,000 points of memory per channel. Free software is available for downloading data for analysis.

• Selectable bandwidth 150/250/350/500 MHz dual or quad channels
• Vertical Sensitivity Resolution : 2mV~5V/div
• Real-Time Sampling 5 GSa/s
• Equivalent-Time Sampling 100 GSa/s
• Memory Depth 25,000 points per channel
• VPO Technology for Displaying Less-Frequently-Occurred Signals
• 10 Different Trigger Modes
• Independent Split Screen and Settings
• Built-in Input Impedance : 50Ω/ 75Ω / 1MΩ
• Trigger & Decode Analysis for I2C, SPI and URAT (Optional)
• Supports Ethernet, VGA, Audio Output
• 8-inch LCD TFT Color Screen with 800 x 600 pixels resolution
• Free Wave software for data storage (Download)

Technical Data GDS-3252 GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Digital Storage Oscilloscopes

• Channels 2ch+Ext.
• Real Time Sample Rate 2.5GSs/s
• Bandwidth 250MHz
