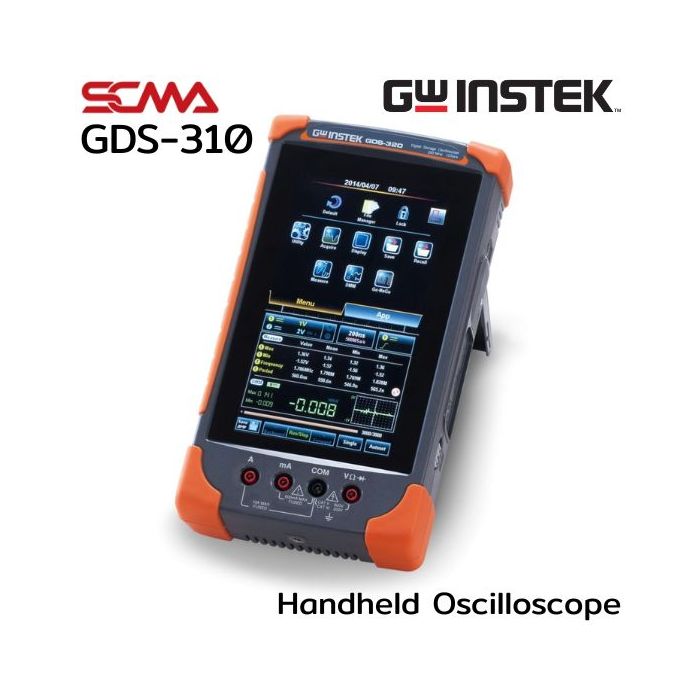

GDS-310 GW instek Handheld Digital Oscilloscope

GDS-310 GW INSTEK Digital Storage Oscilloscope Handheld Digital Oscilloscope

The GDS-310 GW INSTEK Digital Storage Oscilloscope, a portable oscilloscope with bandwidths of 200/100/70 MHz, featuring two signal channels, a maximum sampling rate of 1 GSa/s and memory depth of 5M points/channel. It has a capacitive touch screen display measuring 7" with a resolution of 800×480 pixels, supporting multi-touch operation in both landscape and portrait modes. The device includes an integrated DMM (Digital Multimeter) capable of 50,000/5,000 counts, offering True RMS measurement capability. It can log up to 30,000 waveform records continuously and allows for the review of past measurement results at any time. Additionally, it features temperature measurement and logging functions. The unit comes with built-in application software such as an engineering calculator, SMD resistance coding, color code information, and attenuator calculation tools. An optional differential probe is available to achieve isolation effects.

• 200/100/70MHz Handheld Oscilloscope
• 2 Input Channels
• 1GSa/s Maximum Sampling rate
• Maximum 5M Memory Depth Per Channel
• 7" 800 x 480 Full Touch Panel Capacitive LCD Multi-Point Control, Landscape and Portrait Display
• Built-In 50,000/ 5,000 Counts DMM
• True RMS measurement in DMM function
• 30,000 Consecutive Waveform Records Logging Function, Reply Measurement Results Any Time
• Temperature Measurement and Logging Function
• Built-In Engineering Calculator, SMD Resistance Coding, Color Coding Info, and Attenuator Calculation Application Software
• Optional Differential Probe to Achieve Isolation Effect

GDS-310 GW INSTEK Digital Storage Oscilloscope Handheld Digital Oscilloscope Technical Data

• Channels : 2(BNC-Shield)
• Input Impedance : 1MΩ±2%, 16.5pf approx.
• Maximum Input : CAT II 300VRMS
• Input Coupling : AC, DC, GND
• Bandwidth : DC~100MHz (-3dB)
• Calculated Rise time : 3.5ns
• Sensitivity : 2mV/div~10V/div (1-2-5 increments)
• Accuracy : ±(3% x Readout + 0.1 div + 1mV)
• Bandwidth Limit : 20MHz(-3dB)
• Polarity : Normal, Invert
• Offset Position Range : 2mV/div~50mV/div : ±0.4V, 100mV/div~500mV/div : ±4V, 1V/div~5V/div : ±40V, 10V/div : ±300V
•  Waveform Signal Process : +, - , ×, ÷, FFT, FFTrms
• Display resolution : 480 x 800 pixels
