GDS-2304A GW instek Digital Storage Oscilloscope Digital Storage Oscilloscopes

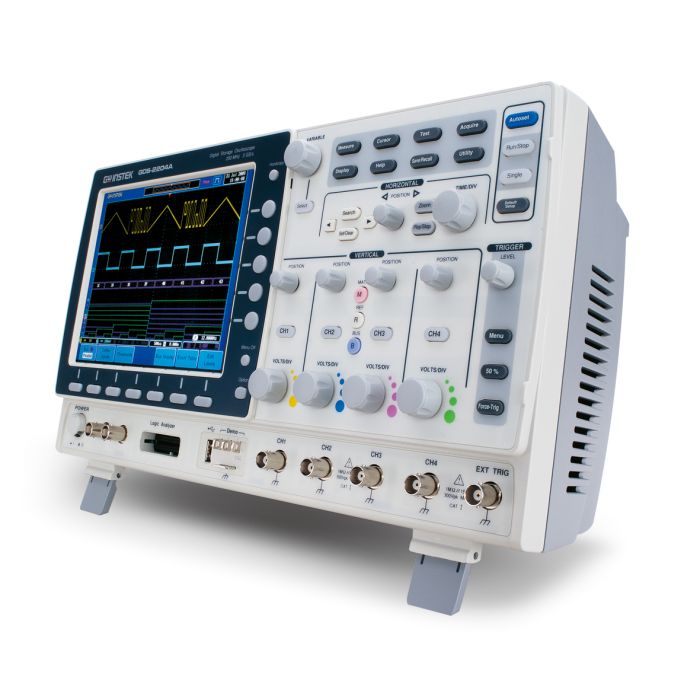

Details of GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2304A Digital Storage Oscilloscopes

GW INSTEK Oscilloscope (Digital Storage Oscilloscope) model GDS-2304A Digital Storage Oscilloscopes is a signal testing device supporting a frequency range of 300 MHz with 4-channel capability. It can update waveform images at up to 80,000 waveforms per second, making it highly efficient for precise applications. Additionally, it works well with various probe types, enhancing its performance and ensuring reliable use. Furthermore, it features advanced testing functions.

• 2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
• Memory Length of 2 Mega Points
• Vertical Range from 1mV/div to 10V/div
• Time Base from 1ns/div to 100s/div
• 8-inch TFT Color LCD Display with a resolution of up to 800x600 pixels
• Segmented Memory Function and Pattern Search for Increased Recording Length Efficiency
• Zoom Window and Play/Pause for Rapid Navigation of Waveforms
• VPO Technology to Display Less-Frequently Occurred Signals
• Offers a variety of measurement functions, including up to 36 automatic measurement types
• 8 or 16-channel digital signals with logic analyzer (MSO) (Available as an option)
• Function Generator (Available as an option)
• Flexible remote control connectivity (Standard: USB, Options: LAN/GPIB)
• CAN / LIN bus analysis that can be upgraded, advanced logic, data logging, DVM and H-expansion functions
• Free Wave software for data storage (Download)
• 350MHz (10:1/1:1) Passive Switchable Probe
• Logic analysis probe 8 channel
• 16-channel logic probe
• 8 and 16-channel logic analyzer card
• Rack mount panel
• 50 ohm terminator adapter
• Expansion module connector & USB Type A to Type A/B cable
• Soft carrying case

Technical data for GW INSTEK Digital Storage Oscilloscope (DSO) model GDS-2304A Digital Storage Oscilloscopes

• Channels 4 ch+Ext.
• Real Time Sample Rate 2GSs/s
• Bandwidth 300MHz
