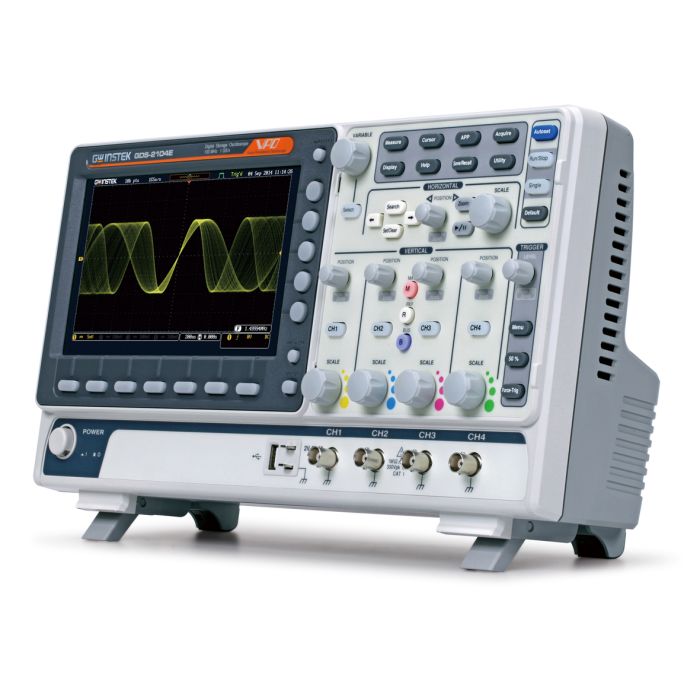

GW INSTEK GDS-2204E Digital Storage Oscilloscope

Details of GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2204E Digital Storage Oscilloscopes

The GW INSTEK Oscilloscope (Digital Storage Oscilloscope) model GDS-2204E Digital Storage Oscilloscopes comes with an 8-inch TFT LCD WVGA display for clear measurement value presentation, along with FFT up to 1M points for higher frequency domain resolution measurements. It also features trigger functions and serial bus decoding I2C / SPI / UART / CAN / LIN as well as data logging functionality that can track signal changes for up to 100 hours.

• Frequency range of 200 MHz, 4-channel
• Real-time sampling rate of 1GSa / s per channel (for the 2ch model); real-time sampling rate up to 1GSa / s (for the 4ch model)
• Memory depth of 10M Channel per channel and VPO waveform display technology
• Waveform update rate of 120,000 wfm / s

Probes Compatible with GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2204E Digital Storage Oscilloscopes

• Current probe, 40Hz ~ 1kHz, 5A, current probe
• Current probe, DC ~ 100KHz, 10A, current probe
• Current probe, 40Hz ~ 10KHz, 20A, current probe
• Current probe, DC ~ 100MHz, 30 amps, current probe
• Power supply current probe - power supply 2-channel for GCP-530/1030
• Power supply current probe - power supply 4-channel for GCP-530/1030
• Current probe, DC ~ 50MHz, 30Arms, current probe
• Differential probe - high voltage differential probe 25M
• Differential probe - high voltage differential probe 50M
• 100M high voltage differential probe
• Oscilloscope probe, 35MHz 1: 1 passive probe, BNC (P / M)
