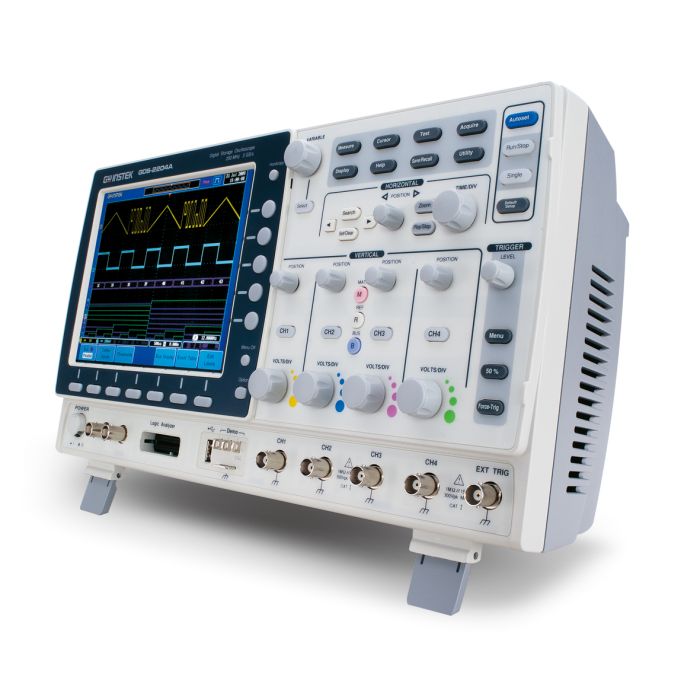

GW INSTEK GDS-2204A Digital Storage Oscilloscope

Details of GW INSTEK Digital Storage Oscilloscope Model GDS-2204A Digital Storage Oscilloscopes

GW INSTEK Digital Storage Oscilloscope Model GDS-2204A Digital Storage Oscilloscopes is a signal measurement device that comes with a large screen, making it easy to read measurements. It supports a frequency range of 200 MHz across four channels and can be used with various probe cables, making it convenient for use. Additionally, there are many accessories available to purchase to enhance its performance.

• Frequency Range: 200 MHz on Four Channels
• Real-time Sampling Rate of 2GSa/s and Equivalent Time Sampling Rate of 100GSa/s
• Memory Length of 2 Mega Points
• Vertical Range from 1mV/div to 10V/div
• Time Base from 1ns/div to 100s/div
• Waveform Update Rate of 80,000 Waveforms per Second
• High-resolution 8-inch TFT Color LCD Screen with a resolution of up to 800x600 pixels
• Segmented Memory Function and Waveform Pattern Search for Increased Recording Length Efficiency
• Zoom Window and Play/Pause for Rapid Navigation of Waveforms
• VPO Technology to Display Less-Frequently Occurred Signals
• Offers a variety of measurement functions, including up to 36 automatic measurement functions
• 8 or 16 Channel Digital Signal with Logic Analyzer (MSO) (Available as an Additional Order)
• Function Generator (Available as an Additional Order)
• Flexible Remote Control Connectivity (Standard: USB, Options: LAN/GPIB)
• CAN / LIN Bus Analysis Upgradable, Advanced Logic, Data Logging, DVM and H-expansion Functions
• Free Wave data storage software (Download)
• 250MHz (10:1/1:1) Passive Switchable Probe

Technical Specifications of GW INSTEK Digital Storage Oscilloscope Model GDS-2204A Digital Storage Oscilloscopes

• Channels: 4 ch+Ext.
• Real Time Sample Rate: 2GSs/s
• Bandwidth: 200MHz
