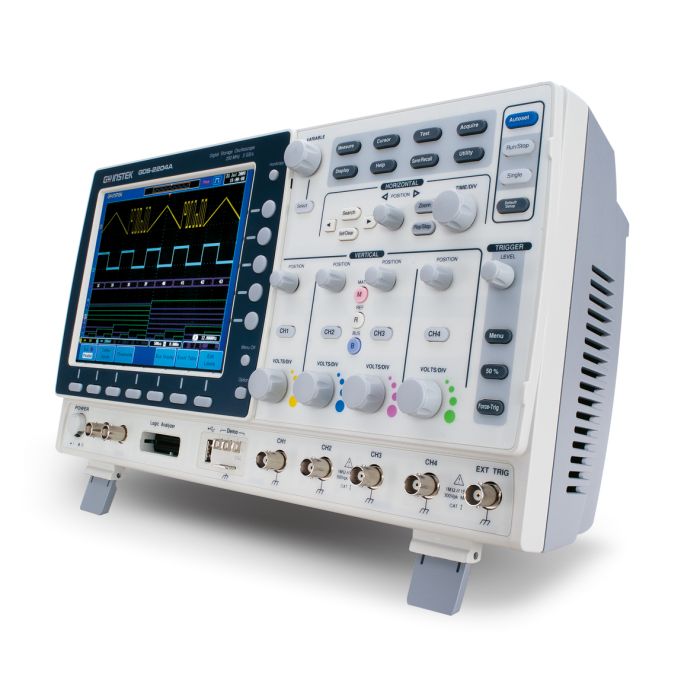

GDS-2104A GW instek Digital Storage Oscilloscope

Details of GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2104A Digital Storage Oscilloscopes

GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2104A Digital Storage Oscilloscopes is a signal measurement device that comes with segmented memory function and waveform pattern search capabilities. It can efficiently enhance the recording length and also supports versatile probe usage.

• Frequency Bandwidth of 100 MHz, 4 Channel
• 2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
• Recording Length of 2 Mega Points
• Vertical Range from 1mV/div to 10V/div
• Time Base from 1ns/div to 100s/div
• Waveform Update Rate of 80,000 waveforms per second
• High-resolution 8-inch TFT Color LCD screen with a resolution of up to 800x600 pixels
• Zoom Window and Play/Pause for Rapid Waveform Navigation
• VPO Technology to Display Less-Frequently Occurred Signals
• Offers a variety of measurement options, with up to 36 automatic measurement functions
• 8 or 16 channel digital signals with logic analyzer (MSO) (additional order)
• Function Generator
• Flexible remote control connectivity (standard: USB, options: LAN/GPIB)
• CAN / LIN bus analysis that can be upgraded, advanced logic, data logging, DVM and H-expansion functions
• Free Wave software for data storage (Download)
• 150MHz (10:1/1:1) Passive Switchable Probe

Technical Data of GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2104A Digital Storage Oscilloscopes

• Channels 4ch+Ext.
• Real Time Sample Rate 2GSs/s
• Bandwidth 100MHz
