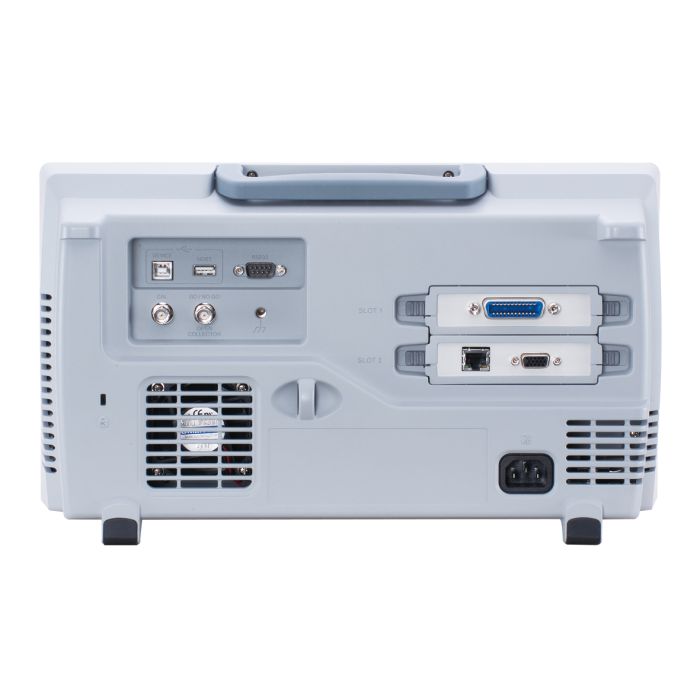

GW INSTEK GDS-2102A Digital Storage Oscilloscope

Details of GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2102A Digital Storage Oscilloscopes

GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2102A Digital Storage Oscilloscopes is a signal reader capable of reading the frequency range of 100MHz, with two-channel signals. The size of the device measures 380x220x145 mm and weighs 4.2 kg, making it more suitable for stationary use rather than portable use. It comes with a large screen that allows clear visibility and separation of signals, and data can be stored in software which is available to download free of charge.

• Real-Time Sampling 2 Gsa/S and Equivalent-Time Sampling 100 Gsa/S.
• Waveform capture points per frame up to 200,000 points per channel.
• VPO technology for displaying Less-Frequently Occurred Signals
• Waveform update rate of up to 80,000 waveforms per minute.
• Segmented Memory Acquisition and Waveform Search Function
• 8-inch TFT Color LCD screen with a resolution of 800x600 pixels
• Free Wave software for data storage (Download)

Technical Data GW INSTEK Oscilloscope (Digital Storage Oscilloscope) Model GDS-2102A Digital Storage Oscilloscopes

• Channels 2ch+Ext.
• Real Time Sample Rate 2GSs/s
• Bandwidth 100MHz
