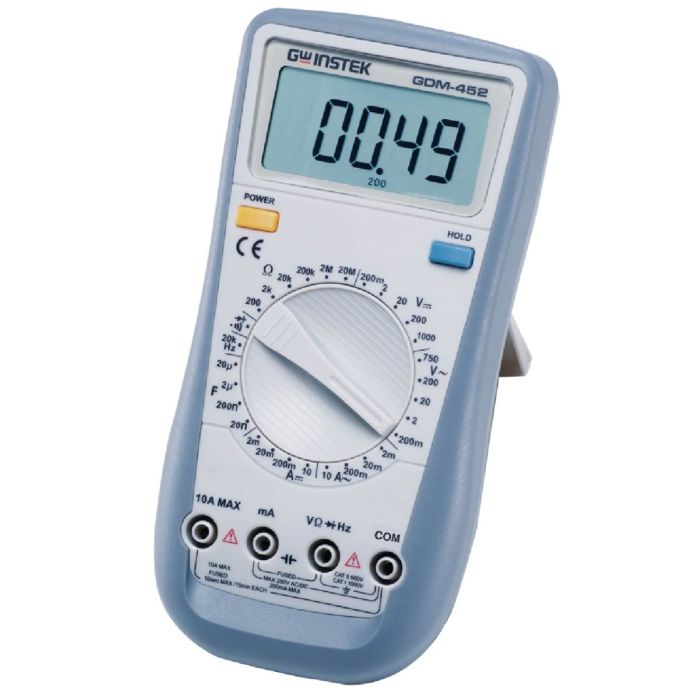

GDM-452 GW Instek Multimeters Handheld Digital Multimeter

Details of GW Instek Multimeter (Multimeters) Model GDM-452 Handheld Digital Multimeter

GW Instek Multimeter (Multimeters) Model GDM-452 Handheld Digital Multimeter is compact and easy to carry, making it convenient for use in various locations. It features a large backlit display capable of displaying up to 19,999 counts

Technical Data GW Instek Multimeter (Multimeters) Model GDM-452 Handheld Digital Multimeter

• Measurement AC current, AC voltage, capacitance, continuity, DC current, DC voltage, resistance, temperature
• Measurement AC current, AC voltage, capacitance, continuity, DC current, DC voltage, frequency, resistance
• Type of display used LCD
• Display parameters 4,5 digit (19999)
• DC voltage measuring range 200mV/2V/20V/200V/600V
• DC voltage measuring accuracy ±(0.05% + 3 digit)
• AC voltage measuring range 200mV/2V/20V/200V/600V
• AC voltage measuring accuracy ±(0.5% + 10 digit)
• DC current measuring range 2mA/20mA/200mA/10A
• DC current measuring accuracy ±(0.5% + 5 digit)
• AC current measuring range (indirect measurement) 2mA/20mA/200mA/10A
• AC current measuring accuracy ±(0.8% + 10 digit)
• Resistance measuring range 200...20MΩ
• Capacitance measuring range 20nF/200nF/2µF/20µF
• Capacitance measuring accuracy ±(4%+ 20 digit)
• Frequency measuring range 1...20kHz
• Frequency measuring accuracy ±(1.5%+5 digit)
• Resistance measuring accuracy ±(0.3%+1 digit)
• Test diodes
• Continuity test acoustic indication
• Standard equipment test leads
• Comply with the standard CAT II 600V EN 61010
• Dimensions (W x H x D) 91x186x39mm
