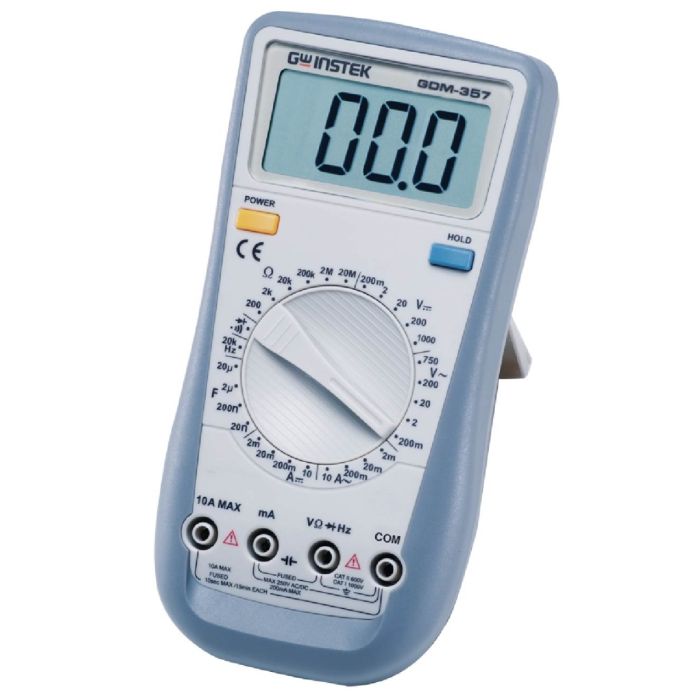

GDM-357 GW Instek Multimeters Handheld Digital Multimeter

Details of GW Instek Multimeter (Multimeters) Model GDM-357 Handheld Digital Multimeter

GW Instek Multimeter (Multimeters) Model GDM-357 Handheld Digital Multimeter is compact and easy to carry, making it convenient for use in various locations. It features a large backlit display capable of displaying up to 1,999 counts.

Technical Specifications of GW Instek Multimeter (Multimeters) Model GDM-357 Handheld Digital Multimeter

• Measurement types AC current, AC voltage, capacitance, continuity, DC current, DC voltage, resistance, temperature
• Display type LCD
• Display parameters 3.5 digit
• DC voltage measuring range 200mV/2V/20V/200V/600V
• DC voltage measuring accuracy ±(0.5% + 1 digit)
• AC voltage measuring range 2V/20V/200V/600V
• AC voltage measuring accuracy ±(0.8% + 3 digit)
• DC current measuring range 2mA/20mA/200mA/10A
• DC current measuring accuracy ±(0.8% + 1 digit)
• AC current measuring range (indirect measurement) 20mA/200mA/10A
• AC current measuring accuracy ±(1% + 3 digit)
• Resistance measuring range 200...20MΩ
• Capacitance measuring range 2nF/20nF/200nF/2µF/200µF
• Capacitance measuring accuracy ±(4%+ 3 digit)
• Temperature measurement accuracy ±(1% + 7 digit)
• Temperature measuring range (with K-type thermocouple) -40...1000°C
• Resistance measuring accuracy ±(0.1%+2 digit)
