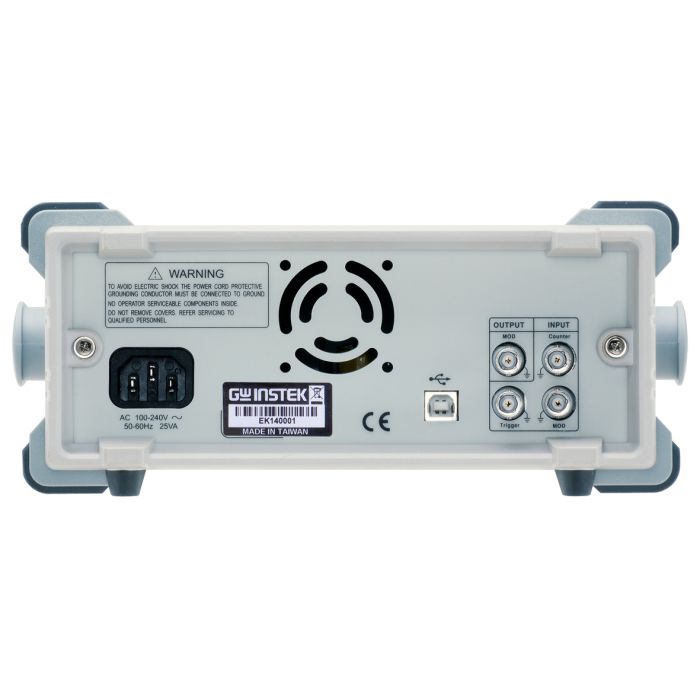

AFG-2025 GW instek Signal Generators Arbitrary Function Generator

Details of GW INSTEK Signal Generators Model AFG-2025 Arbitrary Function Generator

• Frequency : 0.1Hz~5/12/25MHz, 20Vpp., Resolution 0.1Hz
• Waveform : Sine, Square, Ramp, Noise, Arbitrary
• Amplitude Range : 1mVpp~10Vpp (50Ω), 2mVpp, 20Vpp (Open-Circuit)
• Built-in: AM/ FM/ FSK Modulation, Sweep, TTL Output
• Duty Cycle Adjustable : 1%~99%
• Arbitrary Waveform Sampling Rate 20MSa/s, Repeat Rate 10MHz
• Amplitude Resolution 10 bit, Memory Length 4K Point
• Frequency Counter Range : 5Hz~150MHz 3.5 inch LCD Display
• Data Setting - Recall Data 10 Groups
• Interface : USB Device Free Software Arbitrary Connect to Computer

Tech Specification GW INSTEK Signal Generators Model AFG-2025 Arbitrary Function Generator

• Maximum waveform frequency : 25MHz
• Waveform frequency range : 0,1Hz...1MHz (triangle waveform), 0,1Hz...25MHz (rectangular waveform), 0,1Hz...25MHz (sinus waveform)
• Type of display used : LCD 3,5"
• Number of channels : 1
• Memory record length : 4kpts/ch
• Vertical resolution : 10bit
• Output parameters : impedance: 50Ω
• Dimensions : 266x107x293mm
• Interface : USB
• Waveforms : arbitrary, noise, rectangular, sinus, triangle
• Sampling : 20Msps
• Measuring instrument features : 10 sets memory
