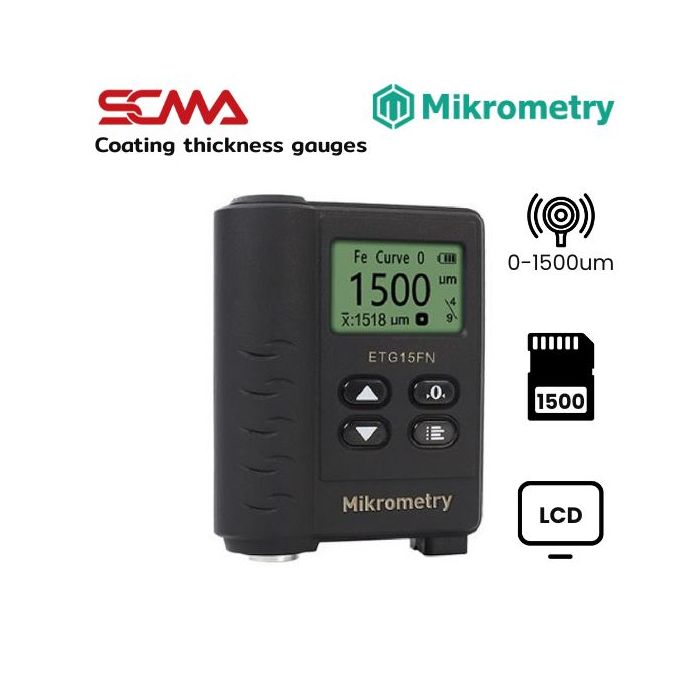

ETG15FN Mikrometry Eddy Current Digital Coating Thickness Gauge

Details of ETG15FN Mikrometry : Eddy Current Digital Coating Thickness Gauge

• Very compact size with integrated probe.
• Magnetic induction method & Eddy Current (IS0 2178, IS02160, IS02160, ASTM D7091], make magnetic thickness measurement of non ferromagnetic coating on ferromagnetic substrate and non-conductive coating on non-magnetic metal collective.
• Quick one-hand operation. Place instrument on specimen and see the measured value.
• Ready to measure immediately without calibration.
• Easy to perform zero-point correction provides correct measurement results for measuring applications with litte changes in shape and substrate material.
• The one-point calibration function allows for an adaptation in cases of severe changes in shapa or substrate material and enables high-precision measurements in selected measurement ranges.
• Data transmitting via USB cable.
• statistic function allows for evaluation of a measurement series and display of the most significant characteristic statistical values.
• Auto power off.
• Wireless mini-printer
