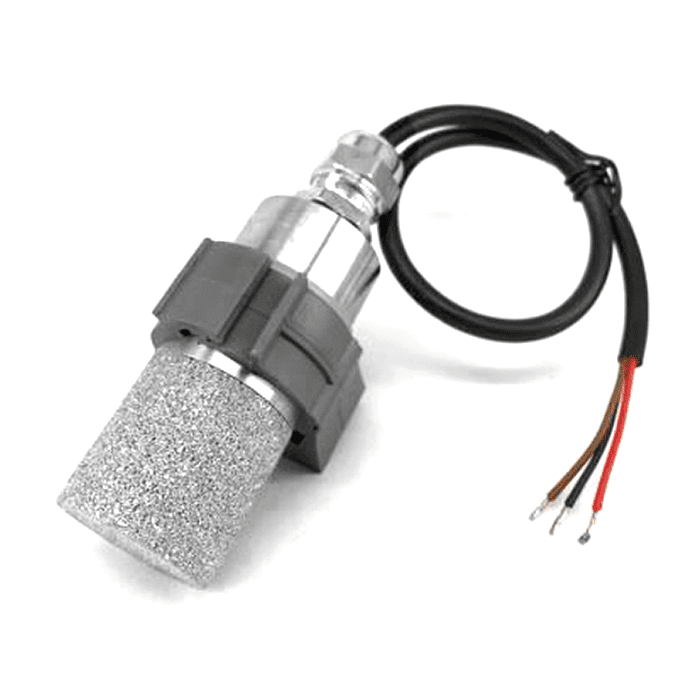

CO2 Sensor Transmitter Model : SGS07-N5

Details of CO2 Sensor Transmitter (Carbon Dioxide Sensor) Model: SGS07-N5

CO2 Sensor Transmitter (Carbon Dioxide Sensor) Model: SGS07-N5 is a sensor for measuring carbon dioxide gas, featuring an NDIR Sensor type. It offers a measurement range of 5000 PPM and accuracy ±40 PPM±3% at 25°C. Due to its IP65 dust and water protection standard, it can be used in any location. Additionally, it comes with analog output 4-20 mA and AC / DC power supply voltage of 24 V±20%, 50 Hz or 60Hz.

Technical Data CO2 Sensor Transmitter (Carbon Dioxide Sensor) Model: SGS07-N5

• Measurement Range : CO₂ 5000 PPM
• Sensor Type : NDIR Sensor
• CO₂ Accuracy : ±40 PPM±3% of reading(at 25°C)
• Analog Output : 4-20 mA
• Communication : RS485(Modbus RTU)
• Operating Temperature and Humidity : 0 … 50°C/ 0 – 100% RH
• Power Supply Voltage Level : AC / DC 24 V±20%, 50 Hz or 60Hz
• Protection Standard : IP65
• Connection Type : Terminal
