CO2 Sensor Transmitter Model : SGS07-15

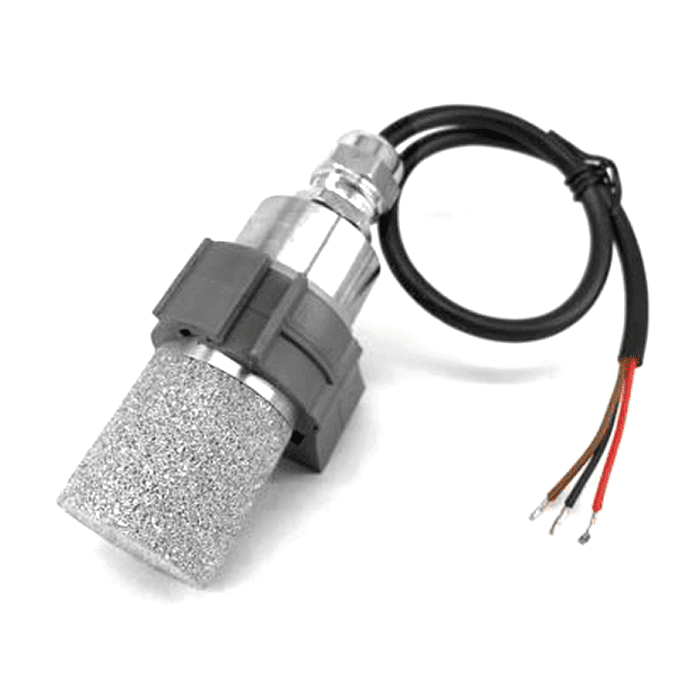

Details of CO2 Sensor Transmitter (Carbon Dioxide Sensor) Model: SGS07-15

CO2 Sensor Transmitter (Carbon Dioxide Sensor) Model: SGS07-15 is a sensor for measuring carbon dioxide gas levels, featuring an NDIR Sensor with a measurement range of 5000 PPM and accuracy ±40 PPM±3% at 25°C. It can be used in any location due to its IP65 dust and water protection standards, and it comes equipped with analog output 4-20 mA and AC / DC 24 V±20%, 50 Hz or 60Hz power supply levels.

Technical Data CO2 Sensor Transmitter (Carbon Dioxide Sensor) Model: SGS07-15

• Measurement Range : CO₂ 5000 PPM
• Sensor Type : NDIR Sensor
• CO₂ Accuracy : ±40 PPM±3% of reading(at 25°C)
• Analog Output : 4-20 mA
• Operating Temperature and Humidity : 0 … 50°C/ 0 – 100% RH
• Power Supply Level : AC / DC 24 V±20%, 50 Hz or 60Hz
• Protection Standard : IP65
• Connection Type : Terminal
