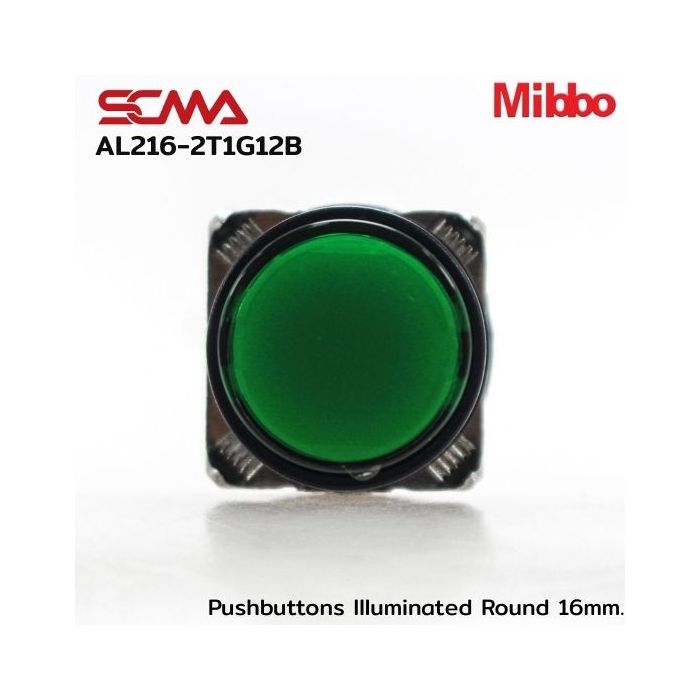

AL216-2T1G12B 12VDC Green Pushbuttons Illuminated Round 16mm Momentary Mini

Details for AL216-2T1G12B 12VDC Green Pushbuttons Illuminated Round 16mm. Momentary Mibbo

AL216-2T1G12B 12VDC Green Pushbuttons Illuminated Round 16mm. Momentary Mibbo is an illuminated round pushbutton with a diameter of 16mm, suitable for momentary or maintained operation. It serves as a control switch with built-in LED status indicators, ideal for installation on control panels or machine control boards to operate systems such as start/stop/reset functions.

General Features of AL216-2T1G12B 12VDC Green Pushbuttons Illuminated Round 16mm. Momentary Mibbo

• Operation Type: Momentary / Maintained
• Mounting Hole Diameter: Ø16mm
• Button Color: Green
• Lamp Voltage: 12V, 24V, 110V, 220V (AC/DC)
• Lamp Type: High Brightness LED
• Service Life: Over 30,000 hours
• Contact Type: 1NO / 1NC / 2NO / 2NC (depending on model)
• Body Material: Heat-resistant plastic
• Protection Degree: IP40 – IP65 (depending on model)
• Operating Temperature: -25°C to +55°C

Key Features

• Illuminated Type with LED status indicators for clear visibility in all lighting conditions.
• Standard size of 16mm, easy to install on small control panels.
• Momentary Type suitable for momentary operation such as Start / Reset Maintained Type used for continuous operations like Power ON / OFF
• Aesthetically designed, durable with a secure locking system to prevent loosening during use. Multiple colors available to clearly identify various button functions.
