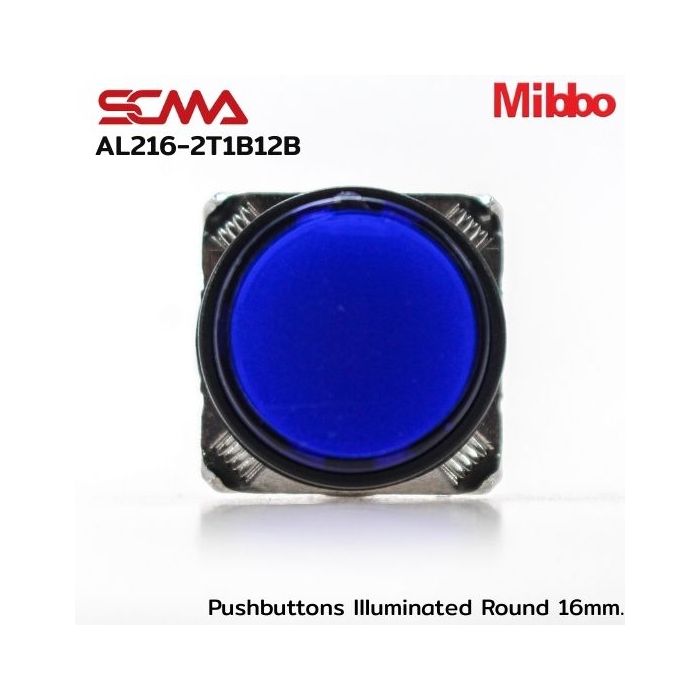

AL216-2T1B12B 12VDC Blue Pushbuttons Illuminated Round 16mm Momentary Mini

Details AL216-2T1B12B 12VDC Blue Pushbuttons Illuminated Round 16mm. Momentary Mibbo

AL216-2T1B12B 12VDC Blue Pushbuttons Illuminated Round 16mm. Momentary Mibbo are illuminated round push buttons with a diameter of 16mm, suitable for control panels or machine control boards to operate ON/OFF or Reset functions. They come in both Momentary Type (press and release) and Maintained Type (hold down until released again). General Specification

Details AL216-2T1B12B 12VDC Blue Pushbuttons Illuminated Round 16mm. Momentary Mibbo

• Operation Type: Momentary / Maintained
• Mounting Hole Diameter: Ø16mm
• Button Color: Blue
• Lamp Voltage: 12V, 24V, 110V, 220V (AC/DC)
• Lamp Type: High Brightness LED
• Longevity over 30,000 hours
• Contact Type: 1NO / 1NC / 2NO / 2NC (depending on model)
• Body Material: Heat Resistant Plastic
• Protection Degree: IP40 – IP65 (depending on model)
• Operating Temperature: -25°C to +55°C

Key Features

• Illuminated Type with LED status indicator for clear visibility in all lighting conditions.
• 16mm standard size, easy installation on small control panels.
• Momentary Type suitable for momentary operation such as Start / Reset. Maintained Type used for continuous ON/OFF operations like Power ON / OFF.
• Aesthetic and durable design with secure locking mechanism to prevent loosening during use. Multiple colors available to clearly identify various button functions.
