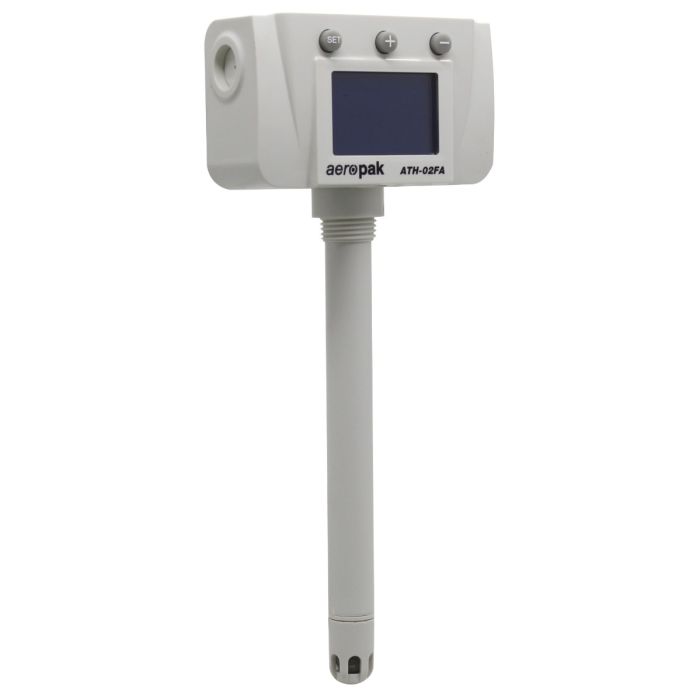

Aeropak Temperature-Humidity Transmitter Model ATH-02FA

Aeropak Temperature-Humidity Transmitter Model ATH-02FA Features

The Aeropak Temperature-Humidity Transmitter Model ATH-02FA, equipped with a 4-20mA output, is compatible with various measuring instruments and general controllers. It can accurately measure temperature and humidity inside pipes, easy to install and wire, and has an uncomplicated programmable setup, allowing for quick deployment.

• 4-20mA output compatible with measuring devices and general controllers
• Able to measure temperature and humidity within the pipe
• Easy to install and wire
• Precise measurement of relative humidity and temperature
• Simplified programmable setup, not complicated
• 4-20mA Temperature Output
• 4-20mA Humidity Output
• Temp Alarm Contact 2 Channel
• Sensor Diameter: 16.7 mm
• Sensor Length: 186 mm
• PT Thread Size 1/2"
• Easy to install and connect (Quick Wiring)

Aeropak Temperature-Humidity Transmitter Model ATH-02FA Measurement Range

• Measurement Range: -40 ...+105°C / 0 ...+100°%
• Precision : 0.1°C / 0.1%RH
• Accuracy : ± 0.6°C / ± 5%RH
