KEPLER KTH-3203 Temperature & Humidity Transmitter

Name: KEPLER KTH-3203 Temperature & Humidity Transmitter
Brand: KEPLER
SKU: 023516
Price: 12800.00 THB
Availability: InStock

Be the first to review this product

Special Price THB 12,800.00 Regular Price THB 16,000.00

In stock

SKU

023516

In stock: 1 pcs

Delivery within: 23/09/2569

🚚 Free shipping on orders over ฿2,500! (normally ฿100)

Humidity and Temperature Sensor, Humidity and Temperature Sensor, sensor transmitter, analog signal 4-20mA, temperature and humidity sensor, Temperature transmitter, Thermometer 4-20mA, signal converter

*Price does not include VAT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

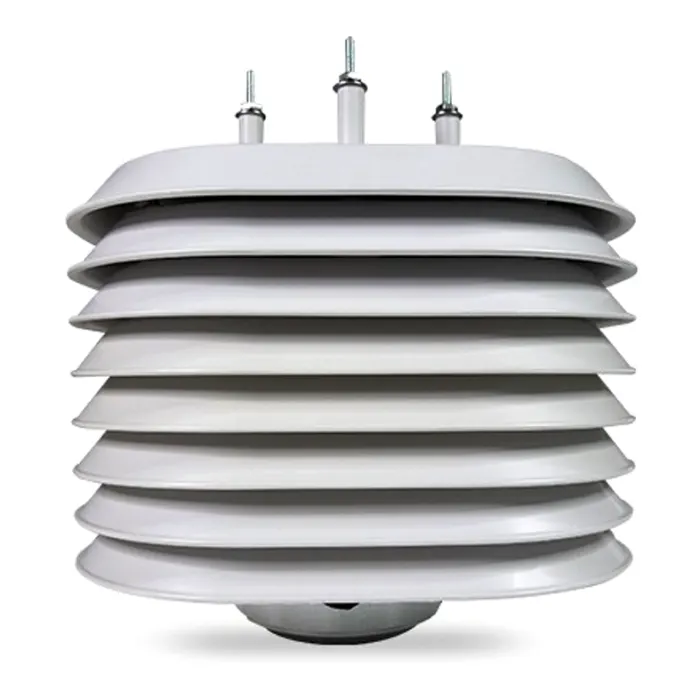

Features of KEPLER Temperature & Humidity Transmitter Model KTH-3203

The KEPLER Temperature & Humidity Transmitter model KTH-3203 comes equipped with an RTD PT100ohm temperature sensor and a Thin-film capacitor humidity sensor, suitable for use in any location, whether indoors or outdoors. It supports temperature measurement up to 100°C and relative humidity of 100% RH, with an IP65 dust and water protection standard.

Output : 4-20mA for sending to display devices (Indicator)
Capable of two-point calibration (Zero and Span) at the installation site
The housing is made from IP65 waterproof ABS plastic
Operating temperature range -40°C...+60°C
Housing dimensions 210x185x210 mm. (HxWxD)

Measurement Range of KEPLER Temperature & Humidity Transmitter Model KTH-3203

Measurement range : Temperature : 0°C...+100°C / Relative humidity : 0...+100% RH
Accuracy ±2% RH, ±0.3°C
Response time : 15 seconds (90% at +25°C in moving air over 0.5M/S)

KEPLER Temperature & Humidity Transmitter Model KTH-3203
