AC5228 \ ecomat 300 \ AS-i \AirBox 2x3/2 4DI-Y IP67 \ DE
Special Price THB 16,050.00 Regular Price THB 21,400.00
In stock
SKU
013137
In stock: 16 pcs
Delivery within: 03/09/2569
🚚 Free shipping on orders over ฿5,000! (normally ฿100)
ifm electronic, efector, as-i, as-interface, two-wire installation, single-wire installation, factory automation, air box for pneumatic system AS-interface, AS-i AirBoxes for pneumatics, SCMA, Siemens, Sick, Balluff, P&F, Turck, Omron, Keyence, Pepperl+Fuchs, Panaso
*Price does not include VAT

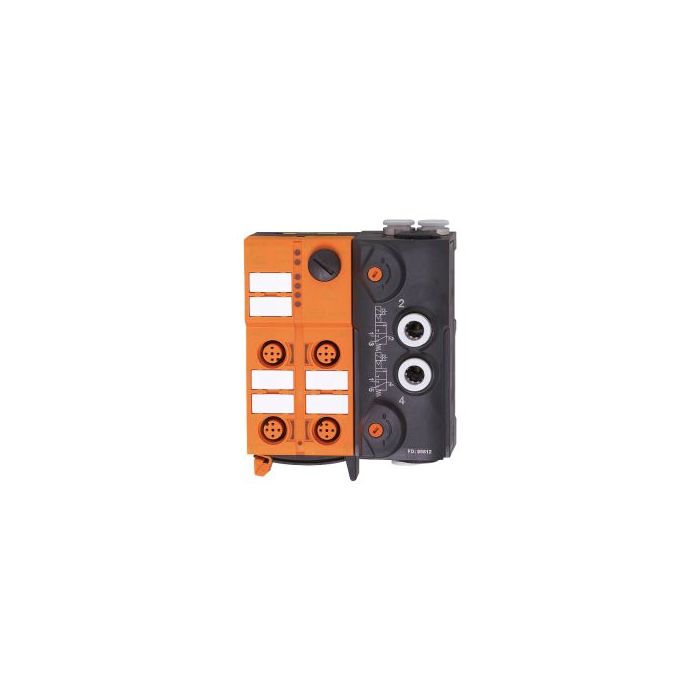

Details of AC5228 \ ecomat 300 \ AS-i (AirBox for pneumatic system for AS-interface) \AirBox 2x3/2 4DI-Y IP67 \ DE
AC5228 \ ecomat 300 \ AS-i (AirBox for pneumatic system for AS-interface) \AirBox 2x3/2 4DI-Y IP67 \ DE Slave module for pneumatic systems
- Direct connection to the pneumatic system
- Pressure resistance up to a maximum of 12 bar
- Valve functions 2x3/2, 1x5/2 and 1x5/3 Way available for selection
- Easy installation without any tools required at all
- Operating voltage 26.5...31VDC
- Dimensions: 85x108x50 mm.
- Dust and water protection standards IP65/IP67
The application of AC5228 \ ecomat 300 \ AS-i (AirBox for pneumatic system for AS-interface) \AirBox 2x3/2 4DI-Y IP67 \ DE Slave module of As-i, which can be directly connected to the pneumatic system and can monitor valve status during production processes
Technical Data AC5228 \ ecomat 300 \ AS-i (AirBox for pneumatic system for AS-interface) \AirBox 2x3/2 4DI-Y IP67 \ DE
- Application : field installation
- Medium temperature[°C] : -10...50
- Operating voltage[V] : 26.5...31.6 DC
- Max. current consumption from AS-i[mA] : 280
- Integrated watchdog : yes
- Number of inputs and outputs : Number of digital inputs: 4; Number of pneumatic outputs: 2
- Number of digital inputs : 4
- Input circuit of digital inputs : PNP
- Sensor supply of the inputs : AS-i
- Power supply[V] : 20...30; (via flat cable)
- Max. total current rating of inputs[mA] : 200
- Input current High[mA] : 6...10
- Input current Low[mA] : 0...2
- Switching level high[V] : > 11
- Digital inputs protected against short circuits : yes
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 16,050.00 |
