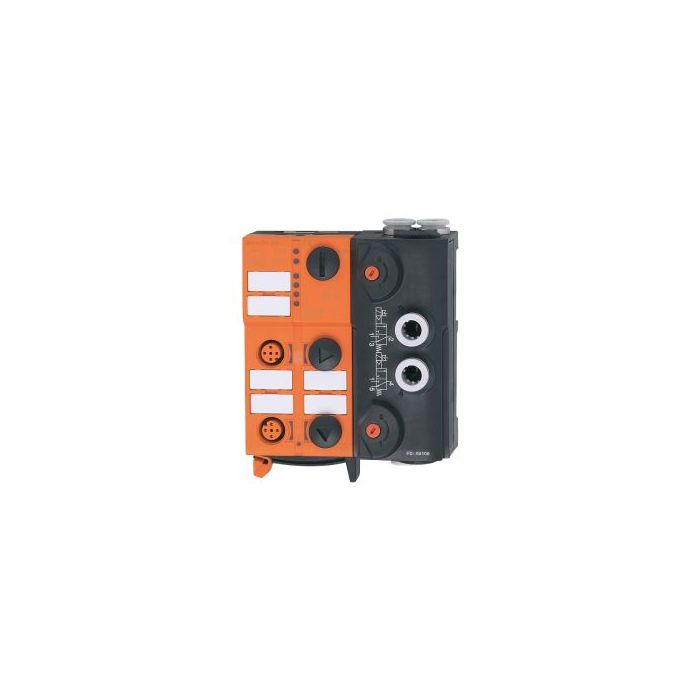

AC5227 \ ecomat 300 \ AS-i \AirBox 2x3/2 2DI IP67 \ DE

Details of AC5227 \ ecomat 300 \ AS-i (AirBox for pneumatic system for AS-interface) \AirBox 2x3/2 2DI IP67 \ DE

AC5227 \ ecomat 300 \ AS-i (AirBox for pneumatic system for AS-interface) \AirBox 2x3/2 2DI IP67 \ DE Slave module for pneumatic systems

• Direct connection to the pneumatic system
• Pressure resistance up to a maximum of 12 bar
• Valve functions 2x3/2, 1x5/2, and 1x5/3 Way available for use
• Easy installation without any tools required at all
• Operating voltage: 26.5...31 VDC
• Dimensions: 85x108x50 mm.
• Dust and water protection standards IP65/IP67

The application of AC5227 \ ecomat 300 \ AS-i (AirBox for pneumatic system for AS-interface) \AirBox 2x3/2 2DI IP67 \ DE Slave module of the As-i, which can be directly connected to the pneumatic system and can monitor valve conditions during production processes

Technical Data AC5227 \ ecomat 300 \ AS-i (AirBox for pneumatic system for AS-interface) \AirBox 2x3/2 2DI IP67 \ DE

• Application : field installation
• Medium temperature[°C] : -10...50
• Operating voltage[V] : 26.5...31.6 DC
• Max. current consumption from AS-i[mA] : 180
• Integrated watchdog : yes
• Number of inputs and out0puts : Number of digital inputs: 2; Number of pneumatic outputs: 2
• Number of digital inputs   2
• Input circuit of digital inputs   PNP
• Sensor supply of the inputs   AS-i
• Power supply[V]   20...30; (via flat cable)
• Max. total current rating of inputs[mA]   100
• Input current High[mA] : 6...10
• Input current Low[mA] : 0...2
• Switching level high[V] : > 11
• Digital inputs protected against short circuits : yes
