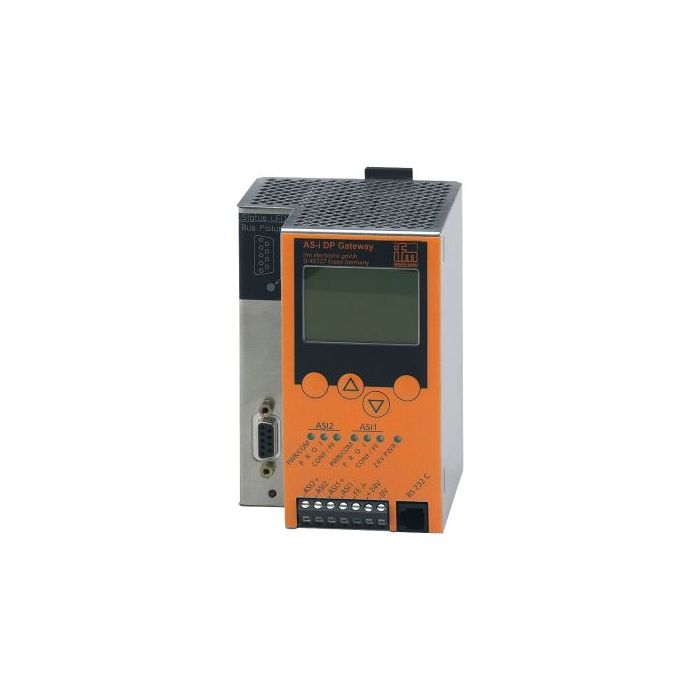

AC1376 \ ecomat 300 \ AS-i \ AS-i DP Gateway M4 2MSTR \ DE

Details of AC1376 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i DP Gateway M4 2MSTR \ DE

AC1376 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i DP Gateway M4 2MSTR \ DE The latest As-i Gateway for single-wire installation.

• Suitable for all Slave modules under As-i Specification 1.0 to 3.0
• Monitor and analyze communication systems via the display screen
• Supports Analog Values, 0~20 mA, 4~20mA , 0~10V and pt100
• Supports various communication protocols such as Profibus, DPV0 and DPV1, Canopen, Devicenet, Ethernet/IP and Modbus TCP
• Operating voltage: 24 VDC
• Dimensions: 86x131x107 mm.
• Dust protection standard IP20

The application of AC1376 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i DP Gateway M4 2MSTR \ DE connects to PLCs, replacing I/O Cards and monitoring the operation of I/O connected to the As-i system. If an I/O fails to operate, a message will be displayed on the screen.

Technical Data AC1376 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i DP Gateway M4 2MSTR \ DE

• Application : PROFIBUS DP gateway
• Operating voltage[V] : 24 DC
• Insulation rating[V] : 500
• Current consumption[mA] : < 400
• Max. current consumption from AS-i[mA] : 10
• Max. power consumption[VA] : 10
• Number of AS-i masters : 2
• Electrical separation : yes
• Communication interface : PROFIBUS
• Transmission standard : EN 50170
• Transmission rate : 12 MBaud
• Protocol : Profibus DP
• Usage type : Data transmission
• Note on interfaces : Diagnostic function
