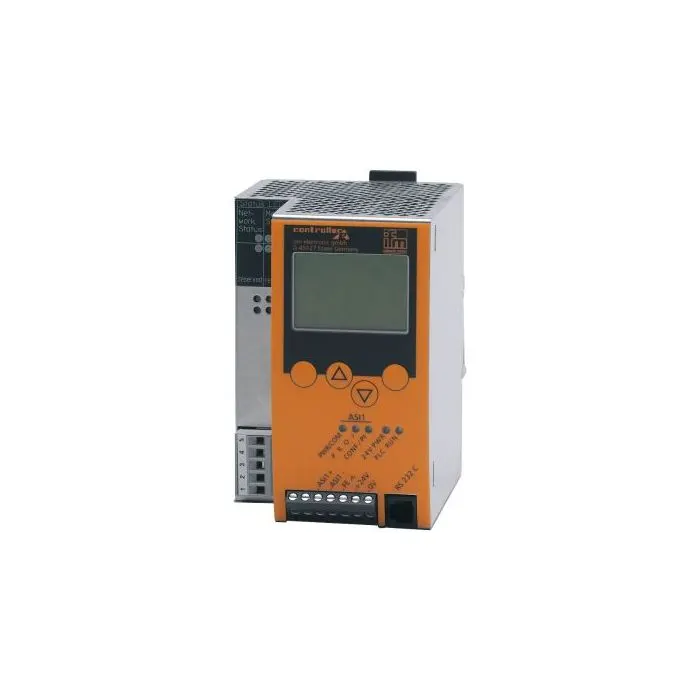

AC1331 \ ecomat 300 \ AS-i \ ControllerE M4 1Master CO \ DE

Details of AC1331 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \ControllerE M4 1Master CO \ DE

AC1331 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \ControllerE M4 1Master CO \ DE The latest As-i Gateway for single-wire installation.

• Suitable for all Slave modules under As-i Specification 1.0 to 3.0
• Monitor and analyze communication systems via the display screen
• Supports Analog Values, 0~20 mA, 4~20mA, 0~10V, and pt100 modules
• Compatible with various communication protocols such as Profibus, DPV0 and DPV1, Canopen, Devicenet, Ethernet/IP, and Modbus TCP
• Operating voltage: 24 VDC
• Dimensions: 86x131x107 mm.
• Dust protection standard IP20

The AC1331 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \ControllerE M4 1Master CO \ DE is used to connect with PLCs, acting as an I/O card and monitoring the operation of I/O connected to the As-i system. If any I/O fails to operate properly, a message will be displayed on the screen.

Technical Data AC1331 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \ControllerE M4 1Master CO \ DE

• Application : decentralized controller; CANopen gateway
• Operating voltage[V] : 24 DC
• Current consumption[mA] : < 500
• Max. current consumption from AS-i[mA] : 10
• Max. power consumption[VA] : 10
• Number of AS-i masters : 1
• Communication interface : RS232; CAN
• Number of CAN interfaces : 1
• Protocol : CANopen
• Usage type : data transmission
• Number of R232 interfaces : 1
• Transmission rate : 9600...115200 Baud
• Connector type : RJ11
• Usage type : programming
• Note on interfaces : electrically isolated
• Ambient temperature[°C] : 0...60
• Storage temperature[°C] : -20...70
• Protection : IP 20
