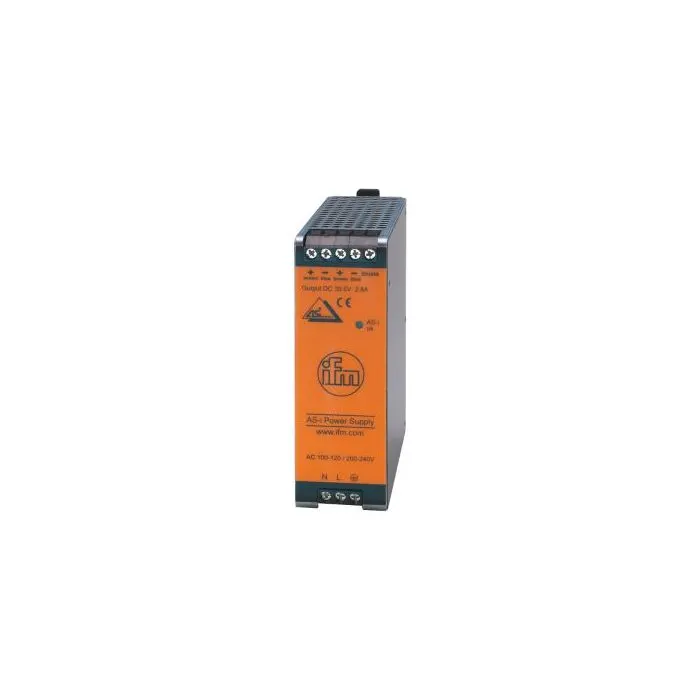

AC1256 \ ecomat 300 \ AS-i \ PSU-1AC/ASi-2,8A \ CZ
Special Price THB 16,200.00 Regular Price THB 21,600.00
In stock
SKU
014232
In stock: 2 pcs
Delivery within: 03/09/2569
🚚 Free shipping on orders over ฿5,000! (normally ฿100)
ifm electronic, efector, as-i, as-interface, two-wire installation, single-wire installation, factory automation, AS-interface power supplies, AS-i Power supplies, AS-i Earth fault monitors, SCMA, Siemens, Sick, Balluff, P&F, Turck, Omron, Keyence,, Pepperl+Fuchs, Keyence
*Price does not include VAT
Details of AC1256 \ ecomat 300 \ AS-i (Power Supply for AS-interface system) \PSU-1AC/ASi-2,8A \ CZ
AC1256 \ ecomat 300 \ AS-i (Power Supply for AS-interface system) \PSU-1AC/ASi-2,8A \ CZ Power supply for As-i system
- Able to deliver current from 2.8A to 8A
- The operating temperature of the unit is very low, thus reducing the cabinet control temperature
- The unit has a slim size, saving installation space
- Has an internal circuit breaker system to prevent device damage
- Operating voltage Input 220VAC Output 24 VDC
- Dimensions: 40x124.5x130.5 mm., 62x124x130.5 mm.
- Dust protection standard IP20
The application of AC1256 \ ecomat 300 \ AS-i (Power Supply for AS-interface system) \PSU-1AC/ASi-2,8A \ CZ is used to supply voltage and current to electronic devices in the As-i system specifically
Technical Data AC1256 \ ecomat 300 \ AS-i (Power Supply for AS-interface system) \PSU-1AC/ASi-2,8A \ CZ
- Frequency AC[Hz] : 47...64
- Operating voltage tolerance[%] : 10
- Operating voltage[V] : automatic range selection
- Nominal voltage AC[V] : 110 / 230
- Input voltage range AC[V] : 100...120 / 200...240
- Protection class : I
- Overvoltage protection : yes; (< 36 V)
- Max. power-on delay time[ms] : 900
- Output voltage AS-i[V] : 30.5; (to PELV; NEC Class II)
- Output power (permanent)[W] : 85
- Power factor (nominal voltage 120 V AC / 60 Hz) : 0.56
- Power factor (nominal voltage 230 V AC / 50 Hz) : 0.47
- Number of output circuits : 1
- Output current AS-i[A] : 2.8
- Max. residual ripple[mV] : 50
- Switch-on peak current (nominal voltage 120 V AC / 60 Hz)[A] : 3
- Switch-on peak current (nominal voltage 230 V AC / 50 Hz)[A] : 3
- Inrush current limitation : yes
- Efficiency (nominal voltage 120 V AC / 60 Hz)[%] : 86.9
- Efficiency (nominal voltage 230 V AC / 50 Hz)[%] : 88
- External input protection : ≤ B-10 A / ≤ C-6 A
- Derating[W/K] : 0 (60...70 °C)
- Mains buffering time (nominal voltage 120 V AC / 60 Hz)[ms] : 98
- Mains buffering time (nominal voltage 230 V AC / 50 Hz)[ms] : 96
- Input current (nominal voltage 120 V AC / 60 Hz)[A] : 1.44
- Input current (nominal voltage 230 V AC / 50 Hz)[A] : 0.86
- Power loss (nominal voltage 120 V AC / 60 Hz)[W] : 12.9
- Power loss (nominal voltage 230 V AC / 50 Hz)[W] : 11.6
- Integrated data decoupling : yes
- Back feeding protection[V] : 35
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 16,200.00 |
