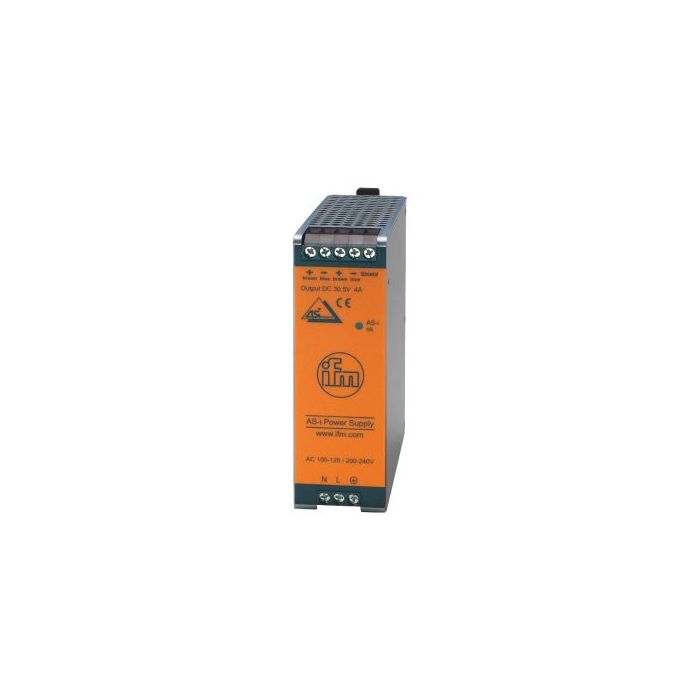

AC1254 ecomat 300 AS-i PSU-1AC/ASi-4A CN

Details of AC1254 \ ecomat 300 \ AS-i (Power Supply for AS-interface system) \PSU-1AC/ASi-4A \ CN

AC1254 \ ecomat 300 \ AS-i (Power Supply for AS-interface system) \PSU-1AC/ASi-4A \ CN Power supply for As-i system

• Able to deliver current from 2.8A to 8A
• The operating temperature of the unit is low, thus reducing the cabinet control temperature
• The unit has a slim size, saving installation space
• Has an internal circuit breaker system to prevent device damage
• Operating voltage Input 220VAC Output 24 VDC
• Dimensions: 40x124.5x130.5 mm., 62x124x130.5 mm.
• Dust protection standard IP20

The application of AC1254 \ ecomat 300 \ AS-i (Power Supply for AS-interface system) \PSU-1AC/ASi-4A \ CN is used to supply voltage and current to electronic devices in the As-i system specifically.

Technical Data AC1254 \ ecomat 300 \ AS-i (Power Supply for AS-interface system) \PSU-1AC/ASi-4A \ CN

• Frequency AC[Hz] : 47...64
• Operating voltage tolerance[%] : 10
• Operating voltage[V] : automatic range selection
• Nominal voltage AC[V] : 110 / 230
• Input voltage range AC[V] : 100...120 / 200...240
• Protection class : I
• Overvoltage protection : yes; (< 36 V)
• Max. power-on delay time[ms] : 900
• Output voltage AS-i[V] : 30.5
• Output power (permanent)[W] : 122
• Output power (peak)[W] : 134
• Note on output power (peak)[W] : briefly to load bus capacities after power on
• Power factor (nominal voltage 120 V AC / 60 Hz) : 0.56
• Power factor (nominal voltage 230 V AC / 50 Hz) : 0.47
• Power reserve[%] : 10
• Number of output circuits : 1
• Output current AS-i[A] : 4
• Max. residual ripple[mV] : 50
• Switch-on peak current (nominal voltage 120 V AC / 60 Hz)[A] : 3
• Switch-on peak current (nominal voltage 230 V AC / 50 Hz)[A] : 3
• Inrush current limitation : yes
• Efficiency (nominal voltage 120 V AC / 60 Hz)[%] : 88
• Efficiency (nominal voltage 230 V AC / 50 Hz)[%] : 89.3
• External input protection : ≤ B-10 A / ≤ C-6 A
• Derating[W/K] : 3 (60...70 °C)
