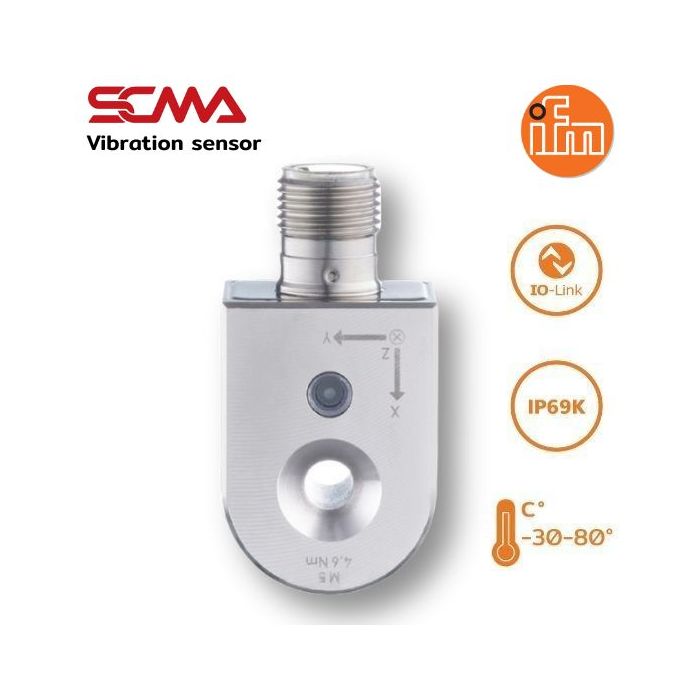

VVB301 \ efector 800 \ Diagnostic systems \ VIBRATION IO-LINK SWITCH is an IO-Link vibration sensor with 3-axis detection for intelligent condition monitoring. The brand  ifm offers a system for analyzing and measuring vibrations in industrial production processes. Its compact size makes it easy to install even in limited spaces, and its durability ensures excellent performance under harsh weather conditions.

• Used to measure machine vibration to monitor motor status and plan maintenance
• Continuous reliable overall vibration monitoring according to DIN ISO 10816 standards
• Durable housing material for harsh industrial environments
• IP69 dustproof and waterproof standard, perfect for use in any location

VVB301 \ efector 800 \ Diagnostic systems \ VIBRATION IO-LINK SWITCH Features

• Design : Basic condition monitoring
• Frequency range[Hz] : 2...5600
• Measuring principle : capacitive
• Operating voltage[V] : 18...30 DC
• Electrical design : PNP/NPN
• Number of digital outputs : 2
• Output function : normally open / normally closed
• Frequency range[Hz] : 2...5600
• Materials housing : stainless steel (316L/1.4404)
• Ambient temperature[°C] : -30...80
• Connector : M12
