VSE002 \ efector 800 \ DIAGNOSTIC ELECTRONICS \ DE

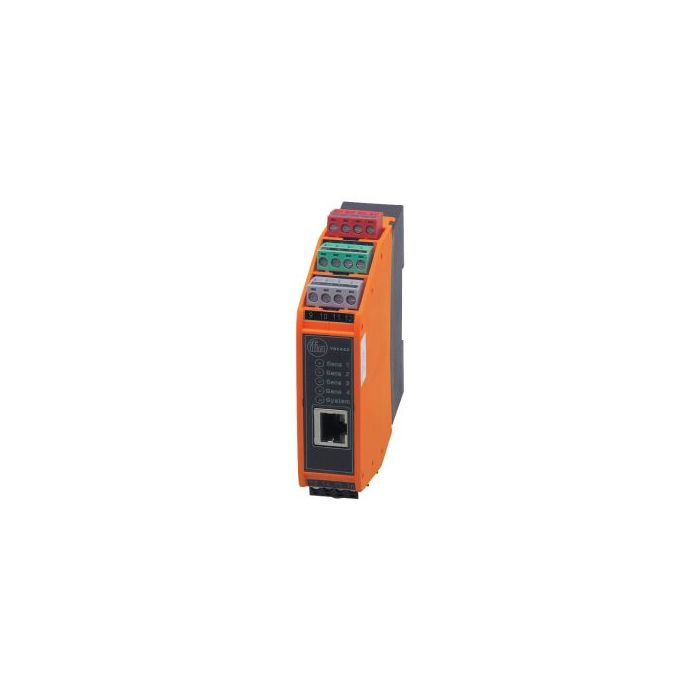

Details of VSE002 \ efector 800 \ Diagnostic (Vibration Sensor) \DIAGNOSTIC ELECTRONICS \ DE

VSE002 \ efector 800 \ Diagnostic (Vibration Sensor) \DIAGNOSTIC ELECTRONICS \ DE The vibration analysis and measurement system from ifm comes with an easy-to-install size, along with dust and water protection standards that will support all weather conditions to ensure smooth production processes.

Features of VSE002 \ efector 800 \ Diagnostic (Vibration Sensor) \DIAGNOSTIC ELECTRONICS \ DE

• Frequency range[Hz] 0.1...12000
• Communication interface Ethernet
• Design housing for DIN rail mounting, parameter setting via PC software, VES004
• Application continuous vibration monitoring
• Operating voltage tolerance[%] 20
• Operating voltage[V] 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric)
• Current consumption[mA] 200; ((24 V DC))
• Protection class III
• Total number of inputs and outputs 8; (configurable)
• Number of inputs and outputs Number of analogue inputs: 2; number of dynamic inputs: 4; Number of digital outputs: 2; Number of analogue outputs: 1
• Frequency range[Hz] 0.1...12000
• Communication interface Ethernet
• Transmission rate 10 MBaud; 100 MBaud
• Protocol TCP/IP
• Weight[g] 323.1
• Type of mounting mounting on DIN rail; (TH35 (EN 60715))
• Dimensions[mm] 114.2 x 25.4 x 105.5
• Materials PA
