SUPMEA PH Meter Model SUP-PH8.0

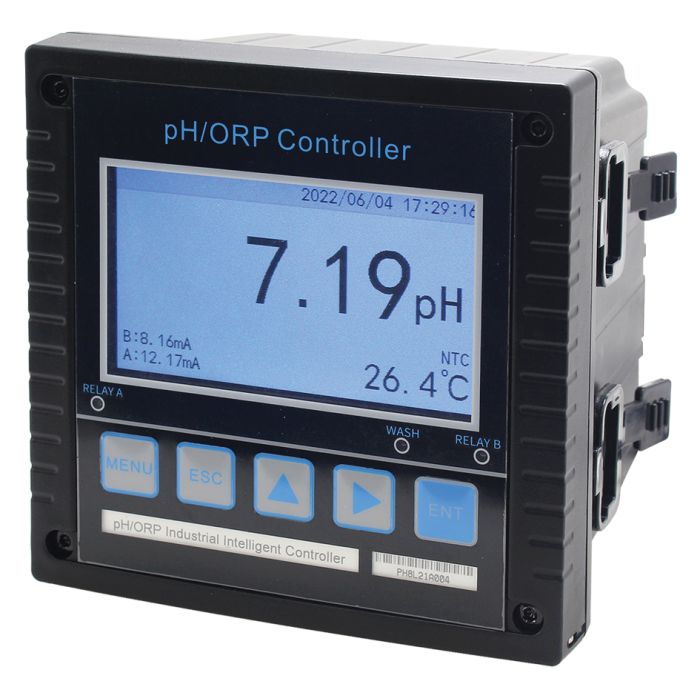

Details of SUPMEA PH Meter (pH and ORP Measurement & Control Device) Model SUP-PH8.0

The SUPMEA PH Meter (pH and ORP Measurement & Control Device) model SUP-PH8.0 is a measuring and controlling device with automatic temperature compensation (ATC) function. It features an LCD display screen of size 4.3 inches, equipped with backlighting. The mode for pH or ORP measurement can be selected directly from the switch on the device. Understanding the setting modes will make usage easy, convenient, and quick. It has analog output 4~20mA for control or display purposes. It also features an RS-485 Modbus protocol interface. There are two relay contact outputs of 250VAC / 3A channels. The measurement ranges are as follows:

• pH Measurement and Control Range : -2~16pH
• ORP Measurement and Control Range : -1999 ~1999mV
• High Accuracy pH : ±0.02pH / ORP : ±0.1%FS

Tech Specifications of SUPMEA PH Meter (pH and ORP Measurement & Control Device) Model SUP-PH8.0

• Display 4.3-inch True color LCD display, Resolution 480x272
• Measured variables pH / ORP / Temp
• Measurement range pH -2.00~16.00pH, ORP -1999~1999mV, Temp -10.0~130.0°C
• Accuracy pH Normal pH sensor ±0.02pH Sb sensor ±0.2pH ORP ±0.1%FS Temp NTC10K -10~60°C ±0.3°C 60~130°C ±2.0°C PT1000 / PT100 ±0.3°C
• Temperature compensation Manual / Automatic
• Operating temperature 0~60°C
• Storage conditions -20~70°C
• Relative humidity 10~85%RH (No condensation)
• Input resistance ≥10^12Ω
• Language Chinese/English
• Analog output 1 output (2 output optional) 4~20 mA, maximumloop is 750Ω , ±0.2%FS
