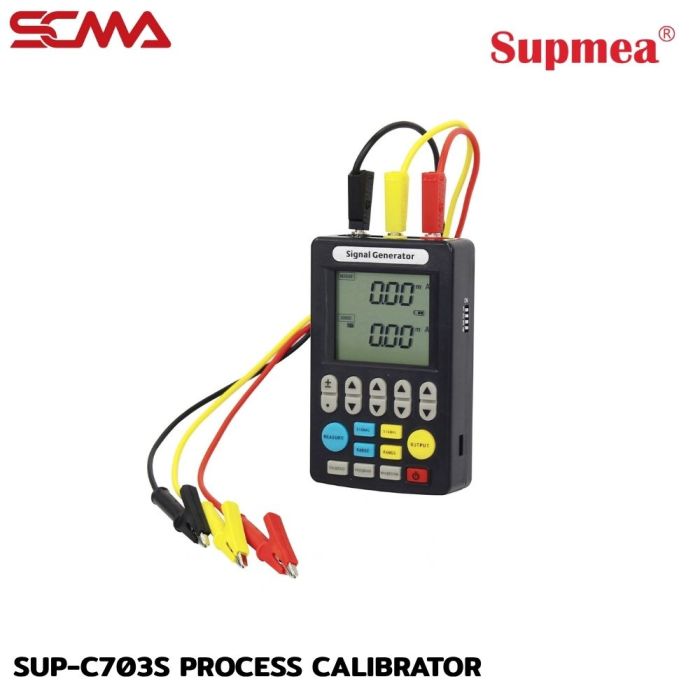

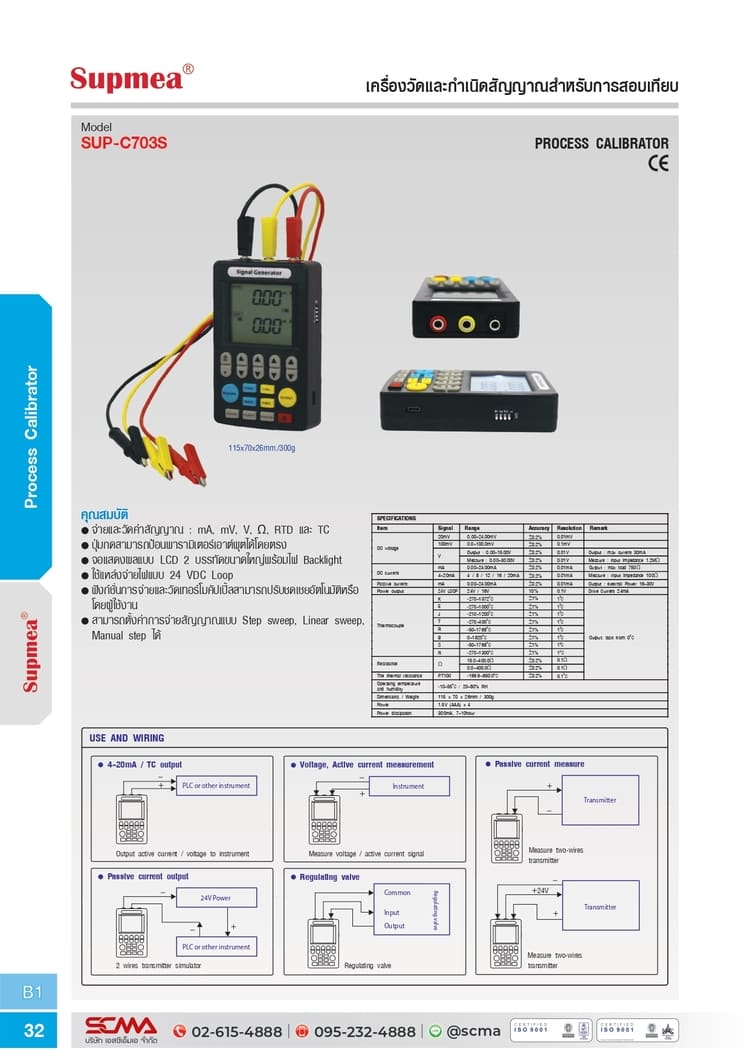

SUPMEA SUP-C703S Process Calibrator

SUP-C703S from SUPMEA is a Process Calibrator for measuring and generating signals used in calibration and inspection of process instrumentation systems. It supports mA, mV, V, Ω, RTD, and Thermocouple (TC) signals, suitable for testing Transmitters, PLCs, Controllers, and control devices in industrial systems.

The unit features a large 2-line LCD screen with backlight, allowing direct parameter input from buttons. It includes a 24 VDC Loop power supply and supports Step Sweep, Linear Sweep, and Manual Step signal generation modes.

Key Features

  • Sends and measures mA, mV, V, Ω, RTD, and Thermocouple signals
  • Direct parameter input from buttons
  • Large 2-line LCD screen with backlight
  • Included 24 VDC Loop power supply
  • Supports thermocouple signal generation and measurement
  • Automatic or user-defined cold junction compensation for thermocouples
  • Supports Step Sweep, Linear Sweep, and Manual Step modes

DC Voltage

Range Signal Range Accuracy Resolution
20mV 0.00~24.00mV ±0.2% 0.01mV
100mV 0.0~100.0mV ±0.2% 0.1mV
V Output 0.00~15.00V ±0.2% 0.01V
V Measure 0.00~30.00V ±0.2% 0.01V

Output up to 30mA and in voltage measurement mode, the input impedance is 1.2MΩ.

DC Current

Item Signal Range Accuracy Resolution
mA 0.00~24.00mA ±0.2% 0.01mA
4~20mA Step 4 / 8 / 12 / 16 / 20mA ±0.2% 0.01mA Passive Current 0.00~24.00mA ±0.2% 0.01mA
  • Maximum Output Load: 750Ω
  • Measurement Input Impedance: 100Ω
  • Passive Current Output External Power: 16~30V

24V Loop Power

  • Power Output: 24V LOOP
  • Output: 24V / 16V
  • Resolution: 0.1V
  • Drive Current: 24mA

Thermocouple

Type Temperature Range Accuracy Resolution
K -270~1372°C ±1% 1°C
E -270~1000°C ±1% 1°C
J -210~1200°C ±1% 1°C
T -270~400°C ±1% 1°C
R -50~1768°C ±1% 1°C
B 0~1820°C ±1% 1°C
S -50~1768°C ±1% 1°C
N -270~1300°C ±1% 1°C

For Thermocouple Output, the catalog specifies that it starts from 0°C.

Resistance and RTD

  • Resistance Output: 15.0~400.0Ω, Accuracy ±0.2%, Resolution 0.1Ω
  • Resistance Measure: 0.0~400.0Ω, Accuracy ±0.2%, Resolution 0.1Ω
  • PT100: -199.9~650.0°C
  • PT100 Accuracy: ±0.2%
  • PT100 Resolution: 0.1°C

Size and Operating Environment

  • Operating Temperature: -10~55°C
  • Operating Humidity: 20~80% RH
  • Dimensions as per SCMA Catalog: 115 x 70 x 26mm
  • Weight as per SCMA Catalog: 300g
  • Power: 1.5V AAA x 4
  • Power Dissipation: 300mA
  • Battery Life Specified in the Catalog: 7~10 hours

Usage Examples

  • Check and Calibrate 2-Wire Transmitter
  • Supply Loop Power 24V with Signal Check for Current Loop
  • Create and Test 4~20mA Signals
  • Create Voltage Signals to Test PLC, Controller or Instrument
  • Simulate and Test Thermocouple Signals
  • Simulate and Test PT100 Signals
  • Used for Commissioning and Maintenance of Process Instrumentation Systems

Considerations

The operating range of the Measure mode and Output mode differ in some parameters, such as DC Voltage can measure up to 30.00V but outputs up to 15.00V. Therefore, it is important to select usage according to the specified range for each mode.
