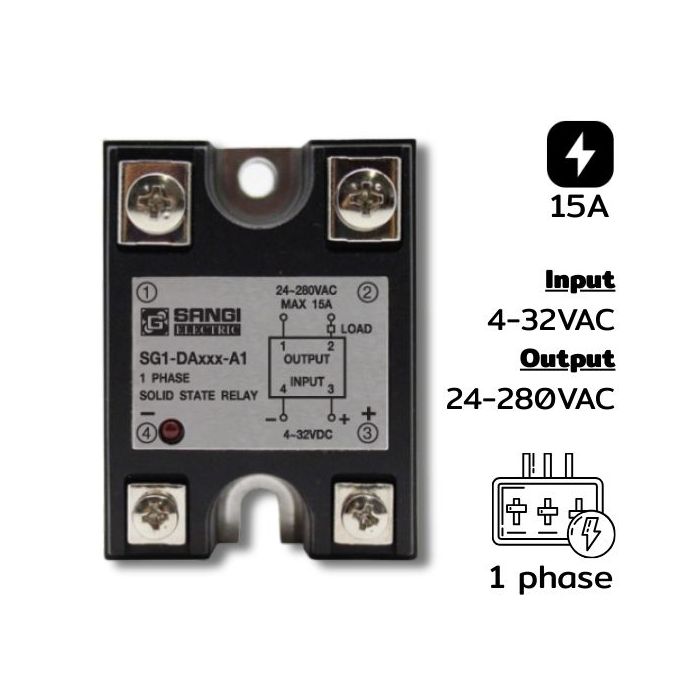

SG1-DA015-A1 Single phases Input 4-32VDC Output 24-280VAC 15A

Product Details of Solid State Relay Model : SG1-DA015-A1 Single phases Input 4-32VDC Output 24-280VAC Current 15A

Working Principle of Single Phase Solid State Relay (SSR) Model : SG1-DA015-A1 Single phases Input 4-32VDC Output 24-280VAC Current 15A

• Input DC / Output AC Working Principle
• Input (Input DC): Accepts DC voltage (e.g., 3–32VDC) to command the SSR to operate.
• When DC power is applied to the input terminal → It triggers the SSR to "close the circuit" at the output terminal.
• Isolation:
• Uses Opto-Isolator (PhotoCoupler) to separate the control circuit (DC) from the power circuit (AC) for safety.
• Drive Stage (Output): Typically uses Triac or SCR to switch on/off AC current to the load.
• When input is activated → Output will "connect" allowing AC current to flow to the load. General features of SSR (Input DC / Output AC).
• Control Voltage (Input Voltage) 3–32VDC (e.g., 5VDC, 12VDC, 24VDC are applicable).

Features of Solid State Relay Model : SG1-DA015-A1 Single phases Input 4-32VDC Output 24-280VAC Current 15A

• Output Voltage (Output Voltage) 24–480VAC (depending on model)
• Maximum Load Current 2A–100A (depending on model)
• Frequency 50/60Hz
• Loads Heaters, lamps, AC fans, AC motors (small to medium size)
• Silent operation No noise because there are no mechanical contacts.
• Heat Sink required for high load use. Adequate cooling is necessary. Advantage Control AC loads with simple DC control circuits.
• No mechanical parts → Long service life
• Spark-free operation
