SM2001 \ efector 300 \ Flow sensor \SMR21XGXFRKG/US \ DE

Details of SM2001 \ efector 300 \ Flow sensor (Flow Sensor) \SMR21XGXFRKG/US \ DE

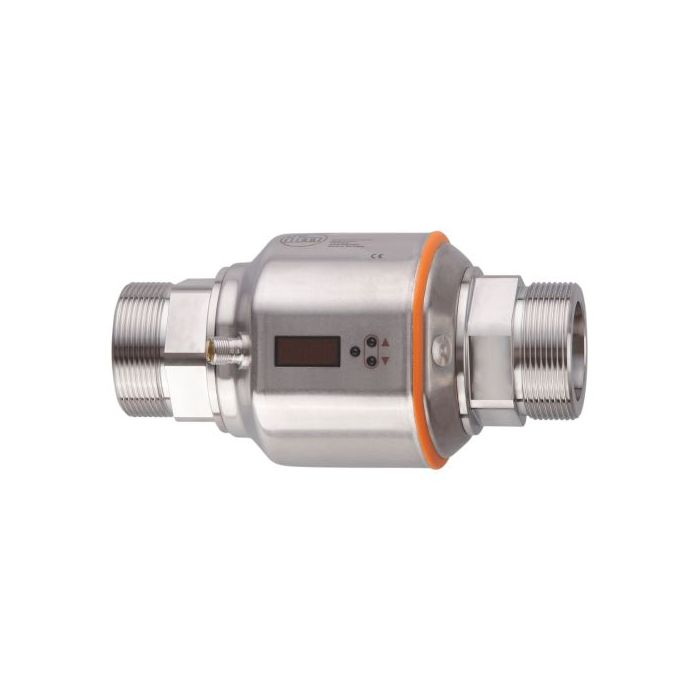

SM2001 \ efector 300 \ Flow sensor (Flow Sensor) \SMR21XGXFRKG/US \ DE High-precision flow meter with display and IO-Link system.

• The IO-Link system allows setting the sensor to NO/NC or PNP/NPN as required, and also enables data retrieval.
• Measures a maximum flow rate of 900 liters per minute.
• Fits installation threads up to 2 inches in size.
• Suitable for water and conductive liquids with a conductivity value of 20µS/cm.
• Displays flow rate, volume, and medium temperature.
• Offers output options including PNP/NPN pulse or analog 4...20 mA / 0...10V models.
• Dimensions: 117x200x103 mm., 54x110 mm.
• Dustproof and waterproof standard IP67

The SM2001 \ efector 300 \ Flow sensor (Flow Sensor) \SMR21XGXFRKG/US \ DE measures the flow rate of water and coolant supplied to machinery, while also monitoring temperature with a single sensor.

Technical Data SM2001 \ efector 300 \ Flow sensor (Flow Sensor) \SMR21XGXFRKG/US \ DE

• Number of inputs and outputs : Number of digital outputs: 2; Number of analog outputs: 1
• Measuring range : 80...9600 gph   1.3...160 gpm
• Process connection : threaded connection G 2 external thread DN50 flat seal
• System : gold-plated contacts
• Application : Totalizer function; empty pipe detection; for industrial applications
• Installation : connected to the pipe via an adapter
• Media : Conductive liquids; water; water-based media
• Note on media : conductivity: ≥ 20 µS/cm   /   viscosity: < 70 mm²/s (40 °C)
• Medium temperature[°F] : 14...194
• Pressure rating : 16 bar   232 psi   1.6 MPa
• MAWP (for applications according to CRN)[bar] : 16
• Operating voltage[V] : 18...32 DC; (to SELV/PELV)
• Current consumption[mA] : < 150
• Protection class : III
• Reverse polarity protection : yes
• Power-on delay time[s] : 5
• Measuring principle : magnetic-inductive
