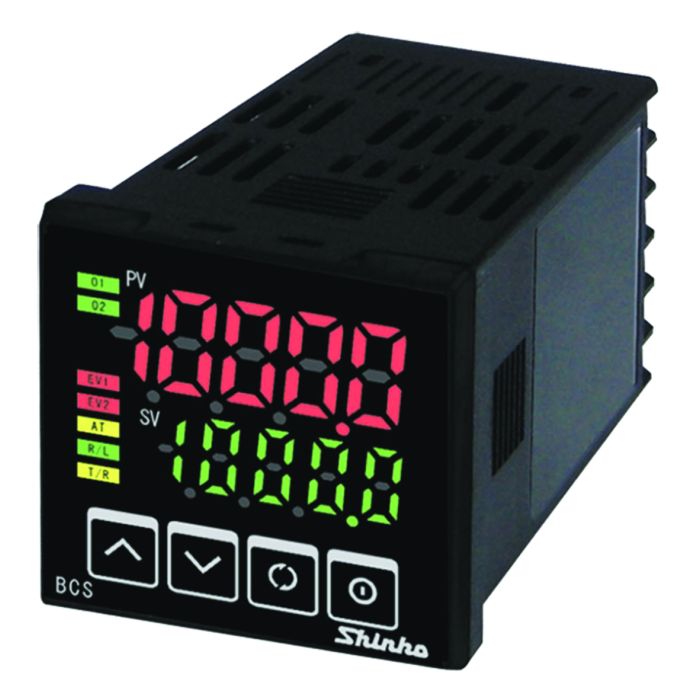

Shinko BCS2S00-06 Temperature Controllers
Special Price THB 4,350.00 Regular Price THB 5,800.00
In stock
SKU
031514
In stock: 12 pcs
Delivery within: 13/10/2569
🚚 ซื้อครบ THB 2,500 จัดส่งฟรี! (ปกติค่าจัดส่ง THB 100)
Digital Temperature Controller, Temperature Controller, Panel Mount Temperature Sensor, Temperature Control Functionality, Temp Control, Temp Installation, Temp Front-of-Door Display, Analog Temperature Control
*Price does not include VAT
Details of Shinko Temperature Controllers Model BCS2S00-06
The Shinko Temperature Controllers Model BCS2S00-06 supports multi-input types including Type K, R, B, E, T, N, PL-II, C(W/Re5-26), JP100, Pr100, 4-20mA, 0-20mA, 0-1V, 0-5V, 0-10V with an accuracy of 0.2% +1 dgt. It features a Program Control 9-step pattern and PID, PI, PD, P control, ON/OFF control functions. Transmission output (4-20 mA Output only) is available for RS-485 communication connection and Non-contact voltage (for SSR drive): 12 V DC 15%
Options of BCS2S00-06
- No option needed
- Serial communication C5
The dimensions of the unit are 48x48x68 mm.
Measurement Range for Shinko Temperature Controllers Model BCS2S00-06
| Input(TC) | Scale Range | Resolution | |
| K | -200 to 1370°C | -328 to 2498°F | 1°C(°F) |
| -200.0 to 400.0°C | -328.0 to 752.0°F | 0.1°C(°F) | |
| J | -200 to 1000°C | -328 to 1832°F | 1°C(°F) |
| R | 0 to 1760°C | 32 to 3200°F |
1°C(°F) |
|
S |
0 to 1760°C |
32 to 3200°F |
1°C(°F) |
|
B |
0 to 1820°C |
32 to 3308°F |
1°C(°F) |
|
E |
-200 to 800°C |
-328 to 1472°F |
1°C(°F) |
|
T |
-200.0 to 400.0°C |
-328.0 to 752.0°F |
0.1°C(°F) |
|
N |
-200 to 1300°C |
-328 to 2372°F |
1°C(°F) |
|
PL-II |
0 to 1390°C |
32 to 2534°F |
1°C(°F) |
|
C(W/Re5-26) |
0 to 2315°C |
32 to 4199°F |
1°C(°F) |
|
Input(RTD) |
Scale Range |
Resolution |
|
|
Pt100 |
-200.0 to 850.0°C |
-328.0 to 1562.0°F |
0.1°C(°F) |
|
-200 to 850°C |
-328 to 1562°F |
1°C(°F) |
|
|
JPt100 |
-200.0 to 500.0°C |
-328.0 to 932.0°F |
0.1°C(°F) |
|
-200 to 500°C |
-328 to 932°F |
1°C(°F) |
|
|
Input(DC) |
Scale Range |
Resolution |
|
|
4 to 20 mA |
-2000 to 10000(*1) |
1 |
|
|
0 to 20 mA |
|||
|
0 to 1 V |
|||
|
0 to 5 V |
|||
|
0 to 10 V |
|||
| Delivery Days | 3 days |
|---|
