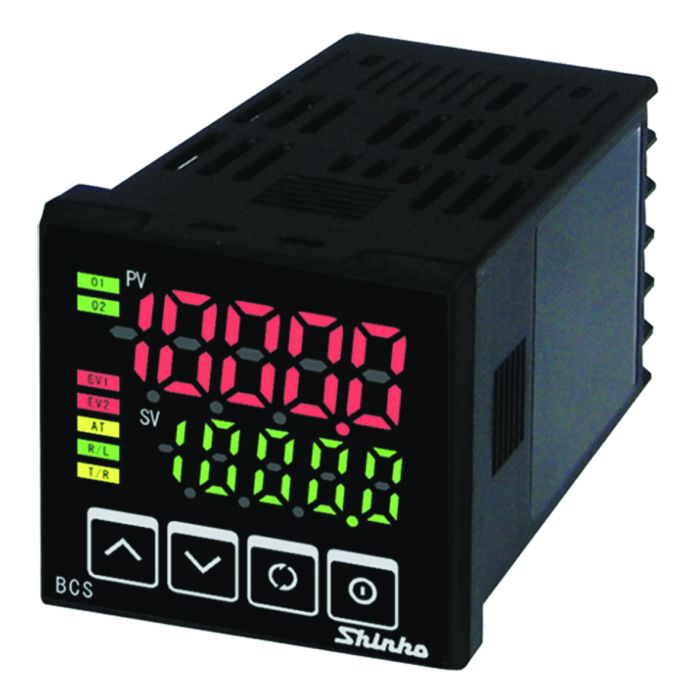

Shinko Temperature Controllers BCS2S00-00
Special Price THB 2,978.00 Regular Price THB 3,970.00
In stock
SKU
026739
In stock: 13 pcs
Delivery within: 13/10/2569
🚚 ซื้อครบ THB 2,500 จัดส่งฟรี! (ปกติค่าจัดส่ง THB 100)
Digital Temperature Controller, Temperature Controller, Panel Mount Temperature Sensor, Temperature Control Functionality, Temp Control, Temp Installation, Temp Front-of-Door Display, Analog Temperature Control
*Price does not include VAT
Details of Shinko Temperature Measurement and Control Device Model BCS2S00-00 Temperature controllers
The Shinko Temperature Measurement and Control Device, Model BCS2S00-00 Temperature controllers supports multiple input types (Multi-input) including Type K, R, B, E, T, N, PL-II, C(W/Re5-26), JP100, Pr100, 4-20mA, 0-20mA, 0-1V, 0-5V, 0-10V with an accuracy of 0.2% +1 dgt. Program Control 9-step pattern along with PID, PI, PD, P control, ON/OFF control Transmission output (4-20 mA Output only) can connect to programs via RS-485 and Non-contact voltage output (for SSR drive): 12 V DC 15%
- Dimensions of the unit (WxHxD) 48x48x68 mm
Measurement Range Shinko Temperature Measurement and Control Device Model BCS2S00-00 Temperature controllers
|
Input(TC) |
Scale Range |
Resolution |
|
|
K |
-200 to 1370°C |
-328 to 2498°F |
1°C(°F) |
|
-200.0 to 400.0°C |
-328.0 to 752.0°F |
0.1°C(°F) |
|
|
J |
-200 to 1000°C |
-328 to 1832°F |
1°C(°F) |
|
R |
0 to 1760°C |
32 to 3200°F |
1°C(°F) |
|
S |
0 to 1760°C |
32 to 3200°F |
1°C(°F) |
|
B |
0 to 1820°C |
32 to 3308°F |
1°C(°F) |
|
E |
-200 to 800°C |
-328 to 1472°F |
1°C(°F) |
|
T |
-200.0 to 400.0°C |
-328.0 to 752.0°F |
0.1°C(°F) |
|
N |
-200 to 1300°C |
-328 to 2372°F |
1°C(°F) |
|
PL-II |
0 to 1390°C |
32 to 2534°F |
1°C(°F) |
|
C(W/Re5-26) |
0 to 2315°C |
32 to 4199°F |
1°C(°F) |
|
Input(RTD) |
Scale Range |
Resolution |
|
|
Pt100 |
-328.0 to 1562.0°F |
-39.2 to 722.0°C |
0.1°C(°F) |
|
-328 to 1562°F |
-39 to 722°C |
1°C(°F) |
|
|
JPt100 |
-328.0 to 932.0°F |
-39.2 to 500.0°C |
0.1°C(°F) |
|
-328 to 932°F |
-39 to 500°C |
1°C(°F) |
|
|
Input(DC) |
Scale Range |
Resolution |
|
|
4 to 20 mA |
-1760 to 8000(*1) |
1 |
|
|
0 to 20 mA |
|||
|
0 to 1 V |
|||
|
0 to 5 V |
|||
|
0 to 10 V |
|||
| Delivery Days | 3 days |
|---|
