SBY333 \ efector 300 \ Flow sensor \ SBY34BF0BPKG/US \ DE

Details of SBY333 \ efector 300 \ Flow sensor (Flow Sensor) \SBY34BF0BPKG/US \ DE

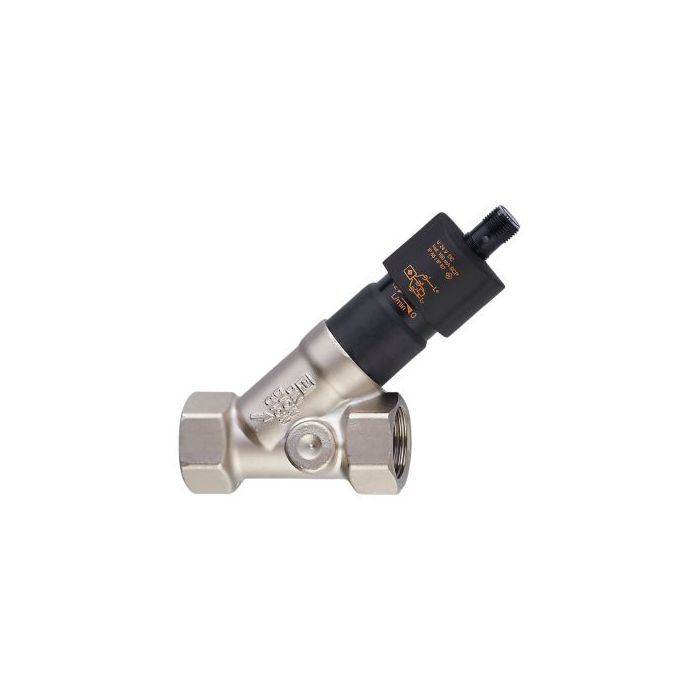

SBY333 \ efector 300 \ Flow sensor (Flow Sensor) \SBY34BF0BPKG/US \ DE The flow sensor (flow meter) from ifm has a measurement range of <25 liters/min for measuring the flow of various liquids in manufacturing processes in industrial applications.

Features of SBY333 \ efector 300 \ Flow sensor (Flow Sensor) \SBY34BF0BPKG/US \ DE

• Application liquids (water, glycol solutions, oils)
• Pressure rating [bar] 40
• Medium temperature [°C] 0...85
• Electrical design DC PNP
• Operating voltage [V] 24 DC (-15% / +10%)
• Current consumption [mA]< 15
• Protection class III
• Reverse polarity protection yes
• Measuring range [l/min] < 25
• Flow range [l/min] < 100
• Set point, SP [l/min] 1...25 *)
• Hysteresis [l/min] 0.5...2
• Repeatability [l/min]0.25
• Accuracy [% of the final value] ± 5
• Response time [s] < 0.01
• Ambient temperature [°C] 0...60
• Protection IP 67
• Process connection Rp ¾
• Materials (wetted parts) stainless steel (304S15); Brass chemically nickel-plated; PP (polypropylene); O-ring: FPM (Viton)
• Housing materials Brass chemically nickel-plated; aluminium anodised; PP (polypropylene)
• Switching cycles min 10 million
• Weight [kg] 0.45
