SBY246 \ efector 300 \ Flow sensor \ SBY11IF0FRKG \ DE

Details of SBY246 \ efector 300 \ Flow sensor (Flow Sensor) \SBY11IF0FRKG \ DE

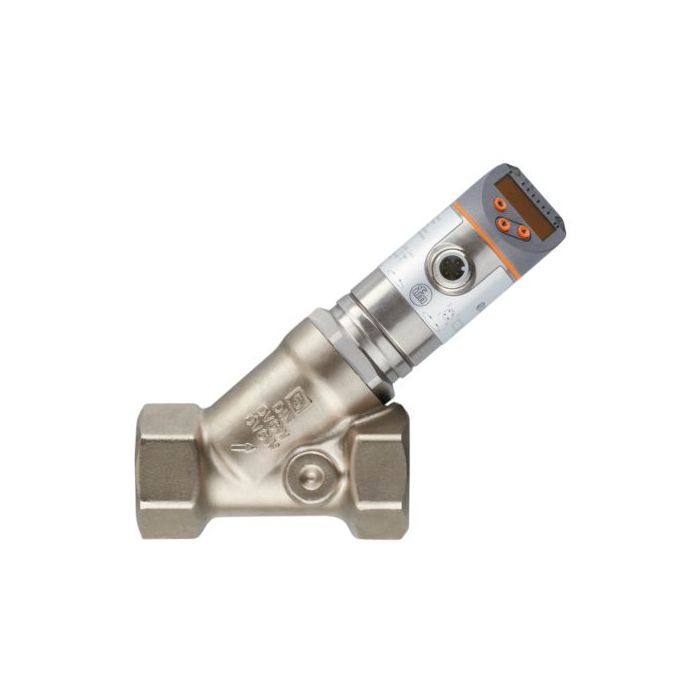

SBY246 \ efector 300 \ Flow sensor (Flow Sensor) \SBY11IF0FRKG \ DE A flow rate measuring sensor with an easy-to-install and use LED display.

• The IO-Link system allows setting the sensor to NO/NC or PNP/NPN as required, and also enables data retrieval.
• Measures a maximum flow rate of 200 I/min suitable for water and oil mediums.
• Tolerates high temperatures up to 100°C
• The installation thread sizes range from G1¼, G1½, G¾, Rp1, Rp¾, and G½
• Rotatable display for easy reading of values
• Offers NO/NC analog output 4~20 mA in a single unit
• Operating voltage: 18...30 VDC
• Dimensions: 113x141 mm.
• Protection standards: IP65/IP67

The SBY246 \ efector 300 \ Flow sensor (Flow Sensor) \SBY11IF0FRKG \ DE measures the flow rate of liquids in pipes with temperatures up to 100°C for general industrial applications.

Technical Data SBY246 \ efector 300 \ Flow sensor (Flow Sensor) \SBY11IF0FRKG \ DE

• Number of inputs and outputs : Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range : 2...100 l/min   0.12...6 m³/h
• Process connection : threaded connection Rp 1 internal thread
• Special feature : Gold-plated contacts
• Application : for industrial applications
• Media : Liquids; water; glycol solutions; coolants
• Note on media : oil 1 with viscosity: 10 mm²/s (40 °C), oil 2 with viscosity: 46 mm²/s (40 °C)
• Medium temperature[°C] : -10...100
• Pressure rating : 25 bar : 2.5 MPa
• MAWP (for applications according to CRN)[bar] : 25
• Operating voltage[V] : 18...30 DC; (to SELV/PELV)
• Current consumption[mA] : < 50
• Protection class : III
• Reverse polarity protection : yes
• Power-on delay time[s] : < 3
• Number of inputs and outputs : Number of digital outputs: 2; Number of analogue outputs: 1
