SA6010 \ efector 300 \ Flow sensor \SAN12XDBFRKG/US-100 \ DE

Details of SA6010 \ efector 300 \ Flow sensor (Flow Sensor) \SAN12XDBFRKG/US-100 \ DE

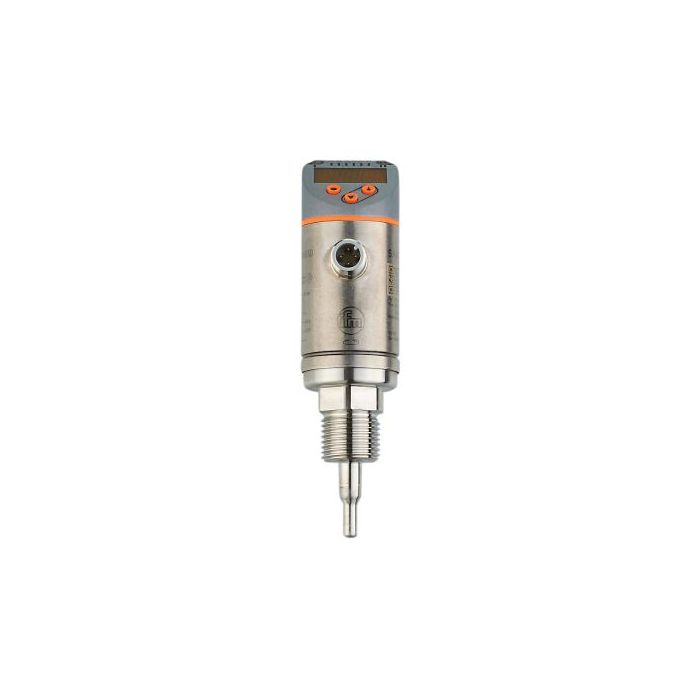

SA6010 \ efector 300 \ Flow sensor (Flow Sensor) \SAN12XDBFRKG/US-100 \ DE A flow sensor from ifm for measuring flow rate, which is used in industrial manufacturing processes. The sensor comes with a probe length of 26.6 mm and supports accurate measurement, displaying results on an LED screen with red and green status indicator lights.

Technical Data SA6010 \ efector 300 \ Flow sensor (Flow Sensor) \SAN12XDBFRKG/US-100 \ DE

• Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
• Process connection threaded connection 1/2" NPT external thread
• System gold-plated contacts
• Media water; glycol solutions; air; oils
• low-viscosity oils with viscosity: ≤ 40 mm²/s (104 °F)
• high-viscosity oils with viscosity: > 40 mm²/s (104 °F)
• Medium temperature[°F] -4...194
• Pressure rating 100 bar 1450 psi 10 MPa
• MAWP (for applications according to CRN)[bar] 100
• Operating voltage[V] 18...30 DC
• Current consumption[mA] < 100
• Protection class III
• Reverse polarity protection yes
• Power-on delay time[s] 10
• Measuring principle calorimetric
• Probe length L[mm] 26.6
• Weight[g] 251.5
• Housing tubular
• Dimensions[mm] Ø 34 / L = 133.4
• Material stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PBT-GF20; PBT-GF30
• Materials (wetted parts) stainless steel (1.4404 / 316L)
• Process connection threaded connection 1/2" NPT external thread
• Probe diameter[mm] 5
• Installation length EL[mm] 26.6
