SA4300 \ efector 300 \ Flow sensor \ SAEXXXXBFRKG/US-100 \ DE

Name: SA4300 \ efector 300 \ Flow sensor \ SAEXXXXBFRKG/US-100 \ DE
Brand: ifm
SKU: 028049
Price: 17775.00 THB
Availability: InStock

Be the first to review this product

Special Price THB 17,775.00 Regular Price THB 23,700.00

In stock

SKU

028049

In stock: 6 pcs

Delivery within: 03/09/2569

🚚 Free shipping on orders over ฿5,000! (normally ฿100)

ifm electronic, efector, Process sensors for manufacturing processes, Process sensors, Flow measurement sensors, Flow control sensors, Liquid flow sensors, Gas flow sensors, Flow meters, Flow switches, Flow sensors, Flow switches, Flow sensors, SCMA, Siemens, Sick, Balluff, P&F, Turck, Pepperl+Fuchs, Keyence

*Price does not include VAT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Details of SA4300 \ efector 300 \ Flow sensor (Flow Sensor) \SAEXXXXBFRKG/US-100 \ DE

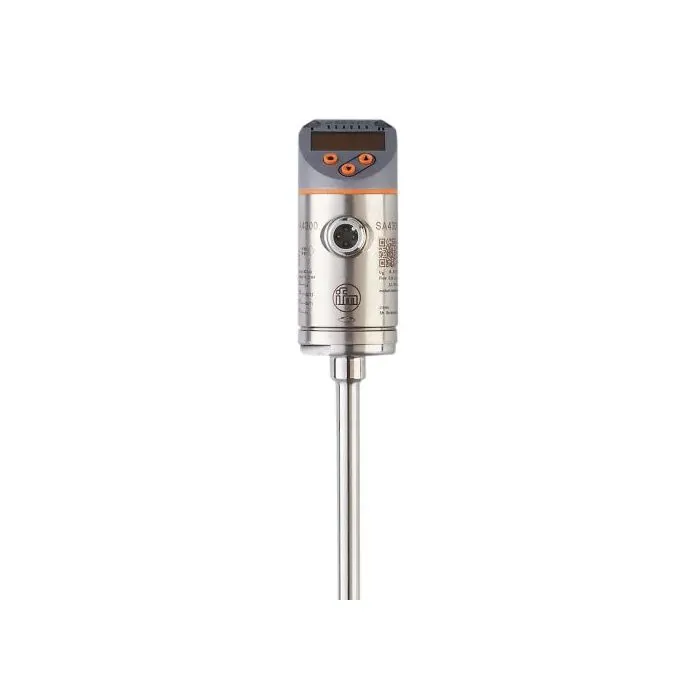

SA4300 \ efector 300 \ Flow sensor (Flow Sensor) \SAEXXXXBFRKG/US-100 \ DE A flow sensor from ifm for measuring flow rate, which is used in industrial manufacturing processes. The sensor comes with a probe length of 200 mm and supports accurate measurement, displaying results on an LED screen with red and green status indicator lights.

Technical Data SA4300 \ efector 300 \ Flow sensor (Flow Sensor) \SAEXXXXBFRKG/US-100 \ DE

Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
Process connection clamp adapter Ø 8 mm
Special feature Gold-plated contacts
Media water; glycol solutions; air; oils
Note on media low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C), high-viscosity oils with viscosity: > 40 mm²/s (40 °C)
Medium temperature[°C] -20...100
Pressure rating 50 bar 5 MPa
MAWP (for applications according to CRN)[bar] 50
Operating voltage[V] 18...30 DC
Current consumption[mA] < 100
Protection class III
Reverse polarity protection yes
Power-on delay time[s] 10
Measuring principle calorimetric
Weight[g] 345.5
