SA2000 \ efector 300 \ Flow sensor \ SAR12XDBFRKG/US-100 \ DE

Details of SA2000 \ efector 300 \ Flow sensor (Flow Sensor) \SAR12XDBFRKG/US-100 \ DE

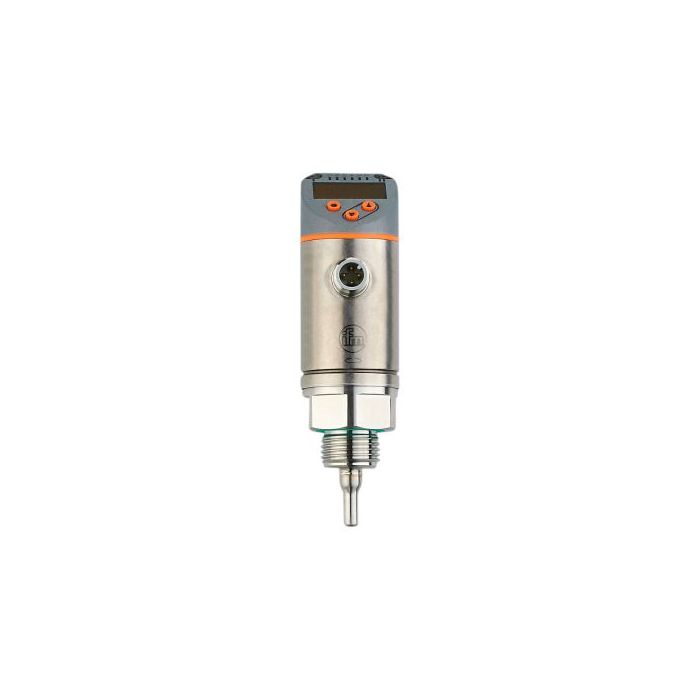

SA2000 \ efector 300 \ Flow sensor (Flow Sensor) \SAR12XDBFRKG/US-100 \ DE This flow sensor from ifm is designed for measuring flow rate and is used in industrial manufacturing processes. The sensor comes with a probe length of 19.2 mm, providing accurate measurement capabilities. It features an LED display with red and green status indicator lights.

Technical Data SA2000 \ efector 300 \ Flow sensor (Flow Sensor) \SAR12XDBFRKG/US-100 \ DE

• Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
• Process connection threaded connection G 1/2 external thread
• Special feature Gold-plated contacts
• Media water; glycol solutions; air; oils
• low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)
• high-viscosity oils with viscosity: > 40 mm²/s (40 °C)
• Medium temperature[°C] -20...90
• Pressure rating 100 bar 10 MPa
• MAWP (for applications according to CRN)[bar] 85
• Weight[g] 270
• Housing cylindrical
• Dimensions[mm] Ø 34 / L = 123.9
• Materials stainless steel (316L/1.4404); stainless steel (301/1.4310); PBT-GF20; PBT-GF30
• Materials (wetted parts) stainless steel (316L/1.4404); Gasket: FKM
• Process connection threaded connection G 1/2 external thread
• Probe diameter[mm] 5
• Installation length EL[mm] 19.2
