PN2099 \ efector 500 \ Pressure sensor \ PN-1-1BRER14-MFRKG/US/ /V \ DE

Be the first to review this product
Special Price THB 20,250.00 Regular Price THB 27,000.00
In stock
SKU
026584
In stock: 10 pcs

Delivery within: 23/09/2569

🚚 Free shipping on orders over ฿2,500! (normally ฿100)

Add to Wish List Add to Compare

ifm electronic, efector, Process sensors for manufacturing processes, Process sensors, Flow measurement sensors, Flow control sensors, Liquid flow sensors, Gas flow sensors, Flow meters, Flow switches, Flow sensors, Flow switches, Flow sensors, SCMA, Siemens, Sick, Balluff, P&F, Turck, Pepperl+Fuchs, Keyence

*Price does not include VAT

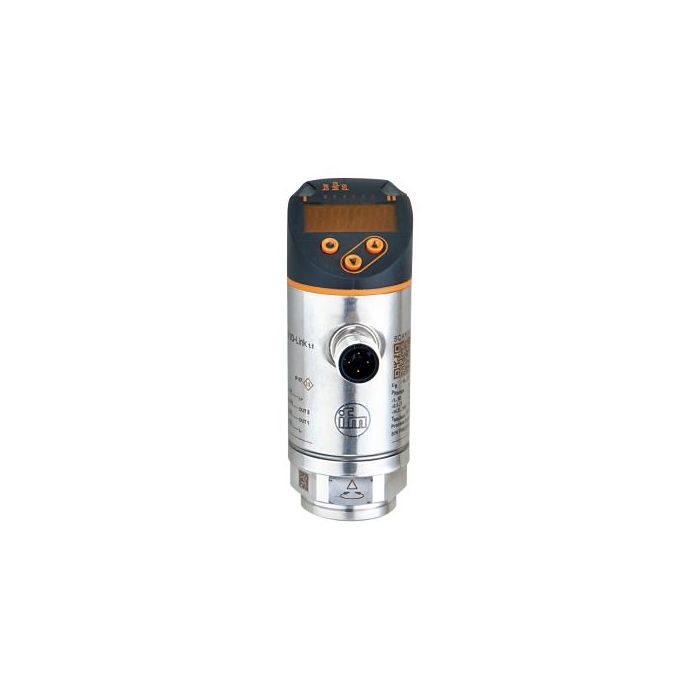

main product photo

Details of PN2099 \ efector 500 \ Pressure sensor (Pressure Sensor) \PN-1-1BRER14-MFRKG/US/ /V \ DE

PN2099 \ efector 500 \ Pressure sensor (Pressure Sensor) \PN-1-1BRER14-MFRKG/US/ /V \ DE is a sensor used in manufacturing processes across various industries from ifm. It features IO-Link capability, allowing the setting of the sensor to NO/NC or PNP/NPN as required and enabling access to historical data.

  • Threaded mounting size G1/4 male and G1/4 female
  • Offers a wide range of functions covering all types of pressure measurement applications
  • Has a dual-color display for operation status
  • Measures and controls pressures up to 600 bar
  • Operating voltage 18...30 VDC
  • Protection standards IP65, IP67

PN2099 \ efector 500 \ Pressure sensor (Pressure Sensor) \PN-1-1BRER14-MFRKG/US/ /V \ DE can be applied in various pressure measurement applications such as measuring hydraulic oil pressure in machines like workpiece pumps in general factories.

Technical Data PN2099 \ efector 500 \ Pressure sensor (Pressure Sensor) \PN-1-1BRER14-MFRKG/US/ /V \ DE

  • Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
  • Measuring range -1...1 bar -1000...1000 mbar -14.5...14.5 psi -29.5...29.5 inHg -401...401 inH2O -100...100 kPa
  • Process connection threaded connection G 1/4 internal thread (DIN EN ISO 1179-2)
  • Special feature Gold-plated contacts
  • Measuring element ceramic-capacitive pressure measuring cell
  • Application for industrial applications
  • Media liquids and gases
  • Medium temperature[°C] -25...80
  • Min. bursting pressure 30000 mbar 450 psi 3000 kPa
  • Pressure rating 10000 mbar 145 psi 1000 kPa
  • Vacuum resistance -1000 mbar -0.1 MPa
  • Type of pressure relative pressure; vacuum
  • Weight[g] 237.5
  • Housing cylindrical
  • Dimensions[mm] Ø 34 / L = 90.7
  • Materials stainless steel (316L/1.4404); PBT+PC-GF30; PBT-GF20; PC
  • Materials (wetted parts) stainless steel (316L/1.4404); Al2O3 (ceramics); FKM
  • Min. pressure cycles 100 million
  • Tightening torque[Nm] 25...35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
  • Process connection threaded connection G 1/4 internal thread (DIN EN ISO 1179-2)
