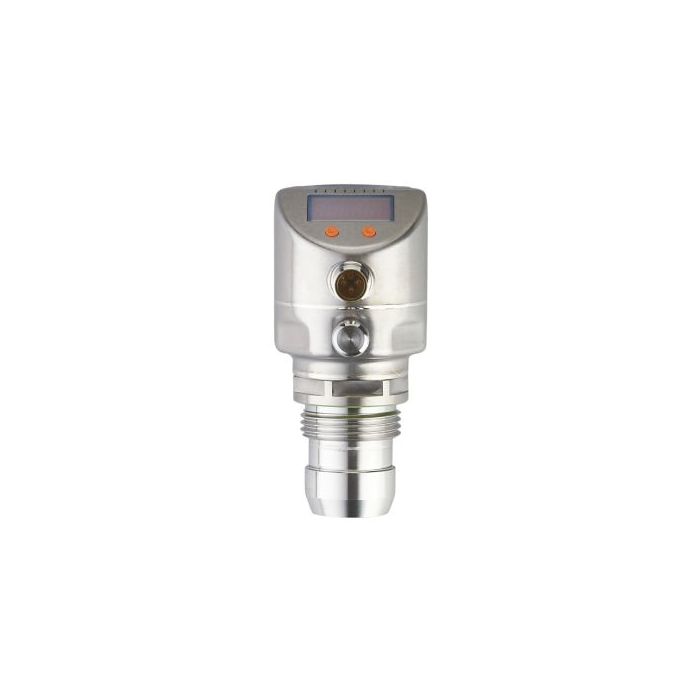

PI2899 \ efector 500 \ Pressure sensor \ PI-1-1BREA01-MFRKG/US/ \ P \ DE

Details of PI2899 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-1-1BREA01-MFRKG/US/      /P \ DE

PI2899 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-1-1BREA01-MFRKG/US/      /P \ DE is a pressure transmitter designed for food and beverage applications.

• The IO-Link system allows the sensor to be set as NO/NC or PNP/NPN according to your requirements, and data can also be retrieved.
• It supports both 2-wire and 3-wire wiring configurations.
• Output is available in both PNP/NPN and analog 4~20 mA formats.
• The installation type is Aseptoflex G1 inch thread and G1 Conical.
• The display is clear and adjustable at the sensor itself.
• Parameters can be set directly on the sensor.
• Operating voltage: 20...32 VDC
• Maximum pressure measurement: 25 bar
• Dimensions: 50x105.8x64 mm.
• Protection standards: IP67, IP68, IP69K

The PI2899 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-1-1BREA01-MFRKG/US/      /P \ DE is used to measure pressure in tanks and pipelines, such as beer production, milk, fruit juice, and other beverage manufacturing processes.

Technical Data PI2899 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-1-1BREA01-MFRKG/US/      /P \ DE

• Number of inputs and outputs : Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range : -1...1 bar    -1000...1000 mbar    -14.5...14.5 psi    -100...100 kPa
• Process connection : threaded connection G 1 external thread sealing cone Attention: The unit must only be installed in a process connection for G1 sealing cone.; The G1A sealing cone of the unit is only suited for adapters with metal end stop.
• Special feature : Gold-plated contacts
• Application : flush mountable for the food and beverage industry
• Media : viscous media and liquids with suspended particles; liquids and gases
• Medium temperature[°C] : -25...125; (145 max. 1h)
• Min. bursting pressure : 30000 mbar    435 psi    3000 kPa
• Pressure rating : 10000 mbar    145 psi    1000 kPa
• Vacuum resistance : -1000 mbar    -0.1 MPa
• Type of pressure : relative pressure; vacuum
• MAWP (for applications according to CRN)[bar] : 10
• Min. insulation resistance[MΩ] : 100; (500 V DC)
• Protection class : III
• Reverse polarity protection : yes
• Measuring principle : hydrostatic
• Integrated watchdog : yes
