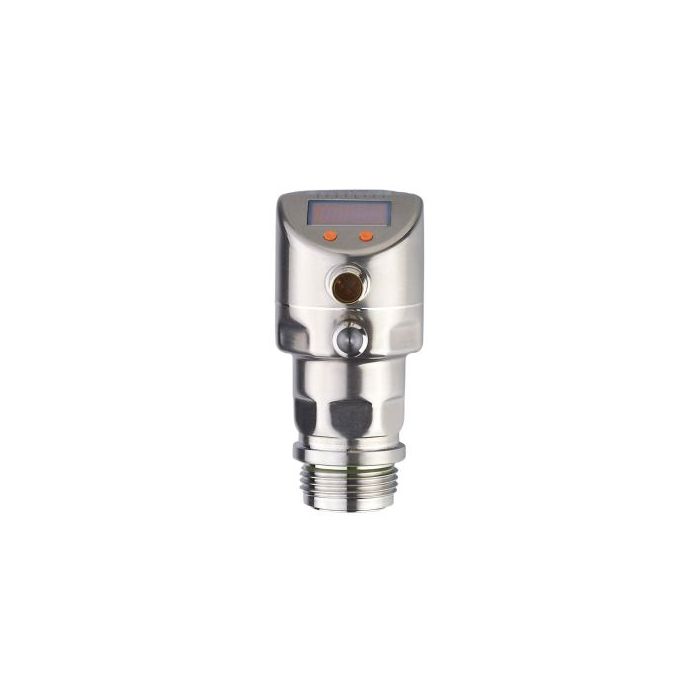

PI2796 \ efector 500 \ Pressure Sensor (PI-2,5-REA01-MFRKG/US/) \ P \ DE
Special Price THB 30,825.00 Regular Price THB 41,100.00
Out of stock
SKU
020789
Out of stock
Delivery date: 4 ก.ย. 2569
ifm electronic, efector, Process sensors for manufacturing processes, Process sensors, Flow measurement sensors, Flow control sensors, Liquid flow sensors, Gas flow sensors, Flow meters, Flow switches, Flow sensors, Flow switches, Flow sensors, SCMA, Siemens, Sick, Balluff, P&F, Turck, Pepperl+Fuchs, Keyence
*Price does not include VAT
Details of PI2796 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-2,5-REA01-MFRKG/US/ /P \ DE
PI2796 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-2,5-REA01-MFRKG/US/ /P \ DE is a pressure transmitter designed for food and beverage applications.
- The IO-Link system allows the sensor to be set as NO/NC or PNP/NPN according to your requirements and enables data logging.
- It can be wired in either 2-wire or 3-wire configurations.
- Output types include both PNP/NPN and analog 4~20 mA.
- The installation is via Aseptoflex G1 inch thread and G1 Conical thread.
- The display is clear and adjustable at the sensor itself.
- Parameters can be set directly on the sensor.
- Operating voltage: 20...32 VDC
- Maximum pressure measurement: 25 bar
- Dimensions: 50x105.8x64 mm.
- Protection standards: IP67, IP68, IP69K
The PI2796 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-2,5-REA01-MFRKG/US/ /P \ DE is used to measure pressure in tanks and pipelines such as beer production, milk, fruit juice, and other beverage manufacturing processes.
Technical Data PI2796 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-2,5-REA01-MFRKG/US/ /P \ DE
- Number of inputs and outputs : Number of digital outputs: 2; Number of analogue outputs: 1
- Measuring range : -0.124...2.5 bar -124...2500 mbar -1.8...36.27 psi -12.4...250 kPa
- Process connection : threaded connection G 1 external thread Aseptoflex Vario
- Special feature : Gold-plated contacts
- Application : flush mountable for the food and beverage industry
- Media : viscous media and liquids with suspended particles; liquids and gases
- Medium temperature[°C] : -25...125; (145 max. 1h)
- Min. bursting pressure : 50 bar 725 psi 5000 kPa
- Pressure rating : 20 bar 290 psi 2000 kPa
- Vacuum resistance : -1000 mbar -0.1 MPa
- Type of pressure : relative pressure
- No dead space : yes
- MAWP (for applications according to CRN)[bar] : 20
- Min. insulation resistance[MΩ] : 100; (500 V DC)
- Protection class : III
- Reverse polarity protection : yes
- Measuring principle : hydrostatic
- Integrated watchdog : yes
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 30,825.00 |
