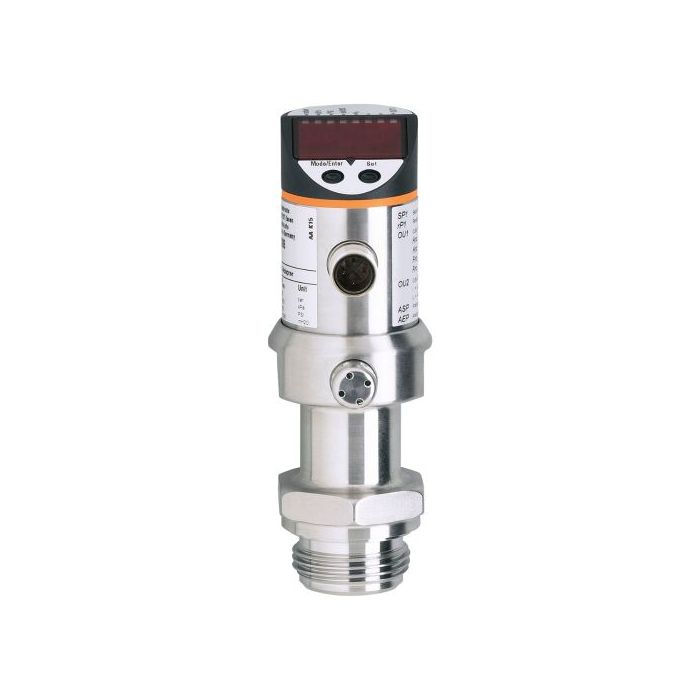

PI1099 \ efector 500 \ Pressure sensor \ PI-1-1BRES30-E-ZVG/US/ \ P \ DE

Name: PI1099 \ efector 500 \ Pressure sensor \ PI-1-1BRES30-E-ZVG/US/ \ P \ DE
Brand: ifm
SKU: 009365
Price: 37575.00 THB
Availability: OutOfStock

Be the first to review this product

Special Price THB 37,575.00 Regular Price THB 50,100.00

Out of stock

SKU

009365

Out of stock

Delivery date: 4 ก.ย. 2569

ifm electronic, efector, production process sensors, Process sensors, vacuum pressure sensors (vacuum), Vacuum sensors, vacuum measurement and control sensors, vacuum level sensors, vacuum sensors, SCMA, Siemens, Sick, Balluff, P&F, Turck, Pepperl+Fuchs, Keyence

*Price does not include VAT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Details for PI1099 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-1-1BRES30-E-ZVG/US/ /P \ DE

PI1099 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-1-1BRES30-E-ZVG/US/ /P \ DE Vacuum pressure sensor from -1,000 to 1,000 mbar by ifm with analog output and easy-to-read display for measuring and controlling various pressures in industrial manufacturing processes. It is temperature resistant and compact in size, making it easy to install even in limited spaces.

Features of PI1099 \ efector 500 \ Pressure sensor (Pressure Sensor) \PI-1-1BRES30-E-ZVG/US/ /P \ DE

Type of pressure application: relative pressure Hygienic systems, viscous media and liquids with suspended particles Liquids and gases
Pressure rating [mbar] 10000
Bursting pressure min. [mbar] 30000
Medium temperature [°C] -25...125 (145 max. 1h)
Electrical design DC
Operating voltage [V] 20...32 DC
Switch-on peak current [mA] 60 (30 ms)
Insulation resistance [MΩ] > 100 (500 V DC)
Protection class III
Reverse polarity protection yes
Display unit mbar, kPa, psi, inH2O, mWS, % der Spanne
Measuring range [mbar] -1000...1000
Analogue start point, ASP [mbar] -1000...500
Analogue end point, AEP [mbar] -500...1000
in steps of [mbar] 1

Factory setting ASP = -1000 mbar; AEP = 1000 mbar

Power-on delay time [s] 0.5

Damping for the analogue output (dAA) [s] 0.1...100.0

Response time analogue output [ms] 40

Integrated watchdog yes

Ambient temperature [°C] -25...80

Storage temperature [°C] -40...100

Protection IP 67 / IP 69K

Process connection for Aseptoflex adapter

Materials (wetted parts) ceramics (99.9 % Al2 O3); PTFE; stainless steel 316L / 1.4435; surface characteristics: Ra < 0.4 / Rz 4

Housing materials stainless steel 316L / 1.4404; PC (Makrolon); PBT (Pocan); PEI; FPM (Viton); PTFE

Min. pressure cycles 100 million

Weight [kg] 0.397
