PG2889 \ efector 500 \ Pressure sensor \PG-,10BREA01-MFRKG/US/\ P \ DE

Details of PG2889 \ efector 500 \ Pressure sensor (Pressure Sensor) \PG-,10BREA01-MFRKG/US/      /P \ DE

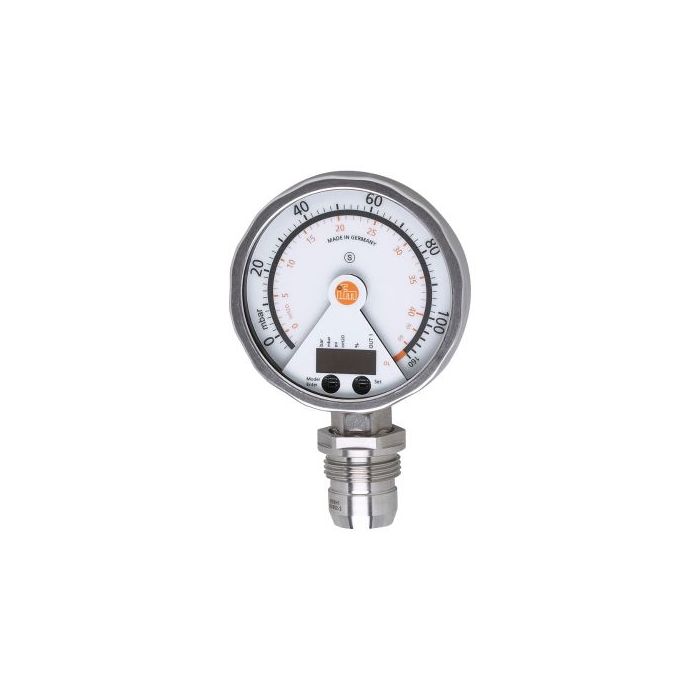

PG2889 \ efector 500 \ Pressure sensor (Pressure Sensor) \PG-,10BREA01-MFRKG/US/      /P \ DE A pressure transmitter with an LED display and a large gauge face.

• Adjustable settings via Optic switch
• PNP/NPN output and 4~20 mA analog output available
• Able to measure and control up to 250 bar maximum pressure
• The gauge measures 4 inches in size, making it easy to read and evaluate measurements clearly
• LED display with a resolution of 4 digits
• Display adjustable by 350° for clear viewing angles
• Threaded installation sizes G1 and G1/2
• Operating voltage: 20...32 VDC
• Dimensions: 100x169x57 mm.
• Dustproof and waterproof standard IP67/69K

The PG2889 \ efector 500 \ Pressure sensor (Pressure Sensor) \PG-,10BREA01-MFRKG/US/      /P \ DE is used to measure the pressure of media in pipes for food and beverage manufacturing industries that require high cleanliness standards.

Technical Data PG2889 \ efector 500 \ Pressure sensor (Pressure Sensor) \PG-,10BREA01-MFRKG/US/      /P \ DE

• Number of inputs and outputs : Number of digital outputs: 1; Number of analogue outputs: 1
• Measuring range : -0.005...0.1 bar    -5...100 mbar    -2...40.15 inH2O
• Process connection : threaded connection G 1 external thread sealing cone Attention: The unit must only be installed in a process connection for G1 sealing cone.; The G1A sealing cone of the unit is only suited for adapters with metal end stop.
• Special feature : Gold-plated contacts
• Application : flush mountable for the food and beverage industry
• Media : viscous media and liquids with suspended particles; liquids and gases
• Medium temperature[°C] : -25...125; (145 max. 1h)
• Min. bursting pressure : 30000 mbar    12043 inH2O    3 MPa
• Pressure rating : 4000 mbar    1605 inH2O    0.4 MPa
• Type of pressure : relative pressure
• MAWP (for applications according to CRN)[bar] : 4
• Operating voltage[V] : 18...32 DC
• Current consumption[mA] : < 70; (24 V)
• Min. insulation resistance[MΩ] : 100; (500 V DC)
• Protection class : III
• Reverse polarity protection : yes
• Power-on delay time[s] : 6
• Measuring principle : hydrostatic
• Integrated watchdog : yes
