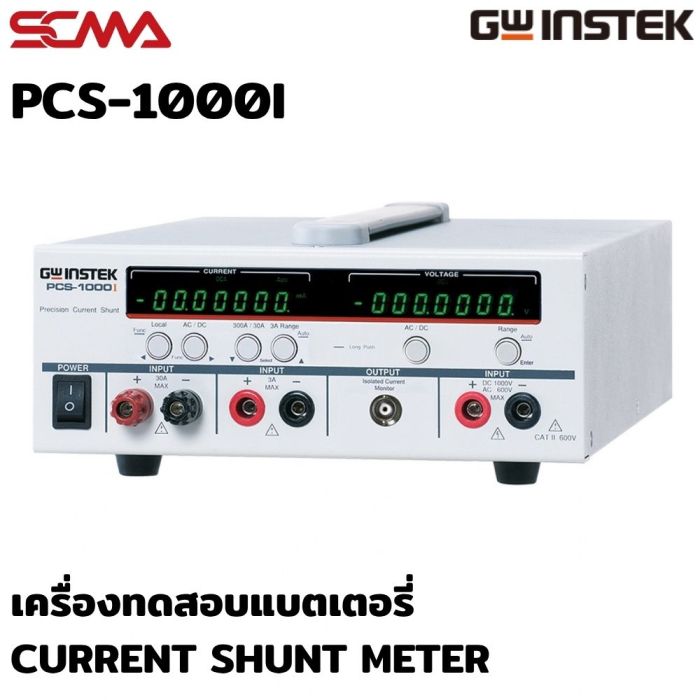

PCS-1000I CURRENT SHUNT METER GW INSTEK

Special Price THB 210,375.00 Regular Price THB 280,500.00
Out of stock
SKU
046629
Out of stock

Delivery date: Within 30-45 days

GW Instek SCMA

Current shunt meter, high precision current meter, AC/DC current meter, voltage and current meter, benchtop current meter, 300A current meter, GW Instek current meter, PCS-1000I, current shunt meter, precision current shunt meter, AC DC current meter, isolated current monitor, GW Instek

*Price does not include VAT

Details of PCS-1000I GW Instek High Precision Current Shunt Meter

The PCS-1000I GW Instek is a high precision AC/DC current shunt meter capable of simultaneously measuring voltage and current with up to 6½ digit resolution. It offers five selectable current ranges from 30 mA to 300 A, along with a maximum DC voltage range of 1000 V and an AC voltage range of up to 600 V. Suitable for power supply testing, calibration work, and equipment adjustment.

Features of PCS-1000I GW Instek

  • Simultaneous measurement of voltage and current
  • Up to 6½ digit resolution for voltage and current measurements
  • Uses separate shunt resistor sets for five selectable current ranges
  • Automatic selection of appropriate measuring range
  • Isolated AC/DC Current Monitor output
  • BNC output for connecting an oscilloscope to view waveform changes in the current

Voltage and Current Measurement Ranges

  • AC/DC Current: 30 mA / 300 mA / 3 A / 30 A / 300 A
  • DC Voltage: 200 mV / 2 V / 20 V / 200 V / 1000 V
  • AC Voltage: 200 mV / 2 V / 20 V / 200 V / 600 V

Connections and Control

  • USB and GPIB interfaces
  • Supports SCPI commands for controlling the instrument and reading measurement data via a computer

Power Supply

  • Mains power supply voltage: 100 / 120 / 220 / 240 V AC ±10%
  • Mains power supply frequency: 50/60 Hz
  • Maximum power consumption: 35 VA

Dimensions and Weight

  • Size: 210 × 80 × 390 mm (width × height × depth)
  • Weight: approximately 5 kg
