OPU205 \ efector 200 \ Photo sensor \ OPU-FPKG/AS \ DE

Details of OPU205 \ efector 200 \ Photo sensor (Photo switch) \OPU-FPKG/AS \ DE

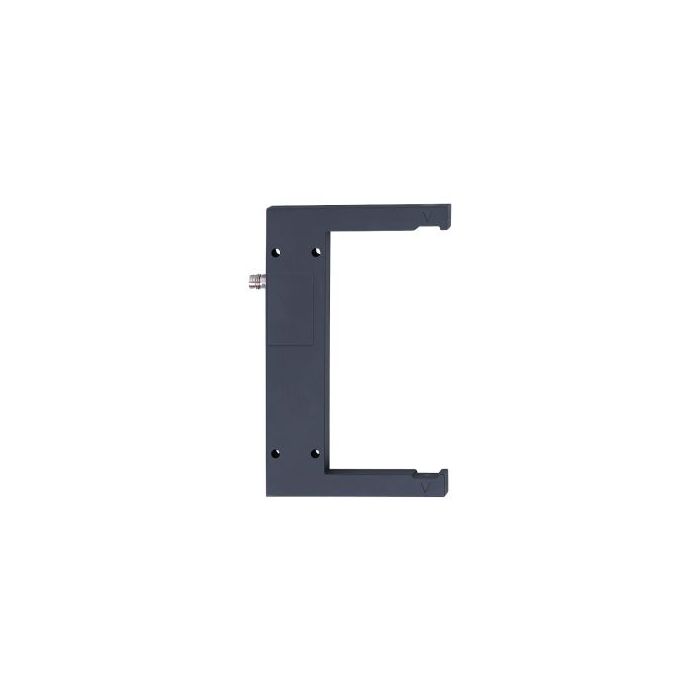

OPU205 \ efector 200 \ Photo sensor (Photo switch) \OPU-FPKG/AS \ DE is a U-type or fork sensor from ifm, designed for position detection in industrial manufacturing processes. The housing material used is metal, which effectively reduces distortion during inspection.

Technical Data OPU205 \ efector 200 \ Photo sensor (Photo switch) \OPU-FPKG/AS \ DE

• Type of light red light
• Operating voltage[V] 10...30 DC; ("supply class 2" to cULus)
• Current consumption[mA] < 30
• Protection class III
• Reverse polarity protection yes
• Type of light red light
• Wave length[nm] 660
• Electrical design NPN
• Output function light-on/dark-on mode; (selectable)
• Max. voltage drop switching output DC[V] 1
• Permanent current rating of switching output DC[mA] 100
• Switching frequency DC[Hz] 5000
• Short-circuit protection yes
• Type of short-circuit protection pulsed
• Overload protection yes
• Weight[g] 296.5
• Dimensions[mm] 144 x 12 x 90
• Fork depth D[mm] 60
• Fork width W[mm] 120
• Materials housing: diecast zinc black anodised; lens: glass
