OPU201 \ efector 200 \ Photo sensor \ OPU-FPKG/AS \ DE

Details of OPU201 \ efector 200 \ Photo sensor (Light switch sensor) \OPU-FPKG/AS \ DE

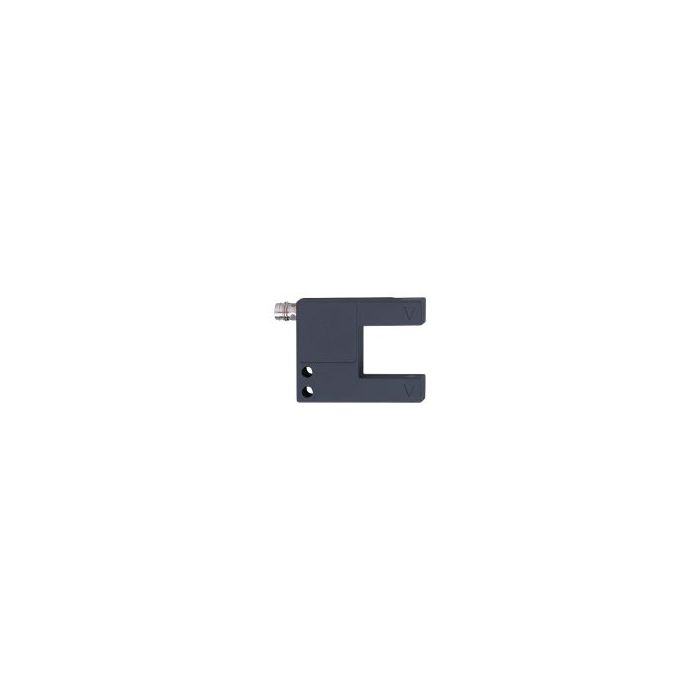

The OPU201 \ efector 200 \ Photo sensor (Light switch sensor) \OPU-FPKG/AS \ DE is a claw-type sensor from ifm that integrates both the transmitter and receiver in one unit. It offers versatile applications such as detecting edges or corners of workpieces, or identifying position markers or colored bands. This product is widely used in packaging lines or material handling systems to enhance industrial efficiency.

Features of OPU201 \ efector 200 \ Photo sensor (Light switch sensor) \OPU-FPKG/AS \ DE

• Operating voltage[V] 10...30 DC; ("supply class 2" to cULus)
• Current consumption[mA] < 30
• Protection class III
• Reverse polarity protection yes
• Type of light red light
• Wave length[nm] 660
• Diameter of the smallest detectable object[mm] 0.3
• Ambient temperature[°C] -25...60
• Protection IP 67
• Weight[g] 74
• Dimensions[mm] 40 x 10 x 50
• Fork depth D[mm] 25
• Fork width W[mm] 20
• Materials housing: diecast zinc black anodised; lens: glass
