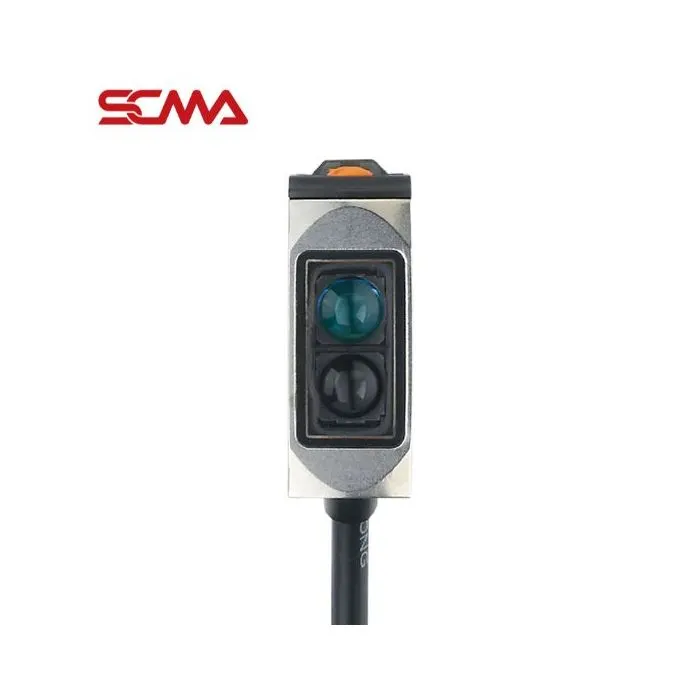

O6H304 \ efector 200 \ Photo sensor \ O6H-FNKG \ SG

Details of O6H304 \ efector 200 \ Photo sensor (Light switch sensor) \O6H-FNKG \ SG

O6H304 \ efector 200 \ Photo sensor (Light switch sensor) \O6H-FNKG \ SG is a photo sensor designed for installation in wet and humid areas, suitable for the food-beverage and pharmaceutical industries with steam.

• With IO-Link system, it can be configured to NO/NC or PNP/NPN as required and allows for data logging.
• The color of the object does not affect detection by the sensor.
• Dark-On and Light-On settings are adjustable.
• Available in both transmitter-receiver type, reflective with a reflector plate, and direct reflection with an object type.
• The model that directly reflects off objects comes with high-stability background suppression.
• Housing material is made of high-grade stainless steel.
• Operating voltage: 10...36 VDC
• Detection frequency: 1000 Hz
• Long detection range up to 200 mm.
• Dimensions: 13x25.4x21 mm.
• Protection standards: IP68/IP69K

The O6H304 \ efector 200 \ Photo sensor (Light switch sensor) \O6H-FNKG \ SG is used to detect objects in food / beverage production processes that are continuously rinsed and cleaned.

Technical Data of O6H304 \ efector 200 \ Photo sensor (Light switch sensor) \O6H-FNKG \ SG

• Type of light : red light
• Housing : rectangular
• System : Background suppression
• Function principle : Diffuse reflection sensor
• Operating voltage[V] : 10...30 DC
• Current consumption[mA] : 22; ((24 V))
• Protection class : III
• Reverse polarity protection : yes
• Type of light : red light
• Wave length[nm] : 633
• Electrical design : NPN
• Output function : light-on/dark-on mode; (selectable)
• Max. voltage drop switching output DC[V] : 2.5
• Permanent current rating of switching output DC[mA] : 100
• Switching frequency DC[Hz] : 1000
• Short-circuit protection : yes
• Type of short-circuit protection : yes (non-latching)
