O6E300 \ efector 200 \ Photo sensor \O6E-FPKG \ SG

Details of O6E300 \ efector 200 \ Photo sensor (Beam switch sensor) \O6E-FPKG \ SG

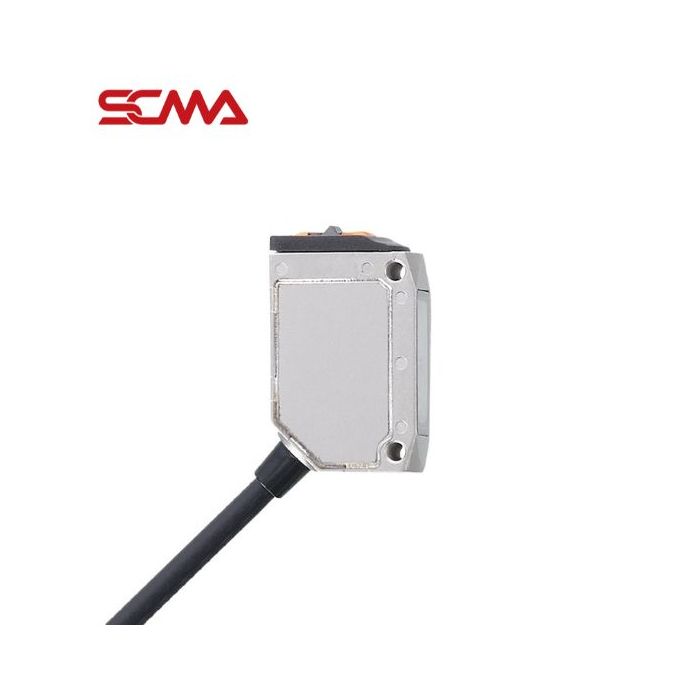

The O6E300 \ efector 200 \ Photo sensor (Beam switch sensor) \O6E-FPKG \ SG is a photoelectric sensor from ifm, designed to detect position using an internal beam switch in industrial manufacturing processes. It has a maximum detection range of 10 meters and the sensor body is made of stainless steel for durable use, suitable for both confined spaces and all weather conditions.

Technical Data O6E300 \ efector 200 \ Photo sensor (Beam switch sensor) \O6E-FPKG \ SG

• Type of light red light
• Housing rectangular
• Function principle Through-beam sensor
• Operating voltage[V] 10...30 DC
• Current consumption[mA] 7; ((24 V))
• Protection class III
• Reverse polarity protection yes
• Wave length[nm] 633
• Electrical design NPN
• Output function light-on/dark-on mode; (selectable)
• Max. voltage drop switching output DC[V] 2.5
• Permanent current rating of switching output DC[mA] 100
• Switching frequency DC[Hz] 1000
• Short-circuit protection yes
• Type of short-circuit protection yes (non-latching)
• Weight[g] 80.8
• Housing rectangular
• Material housing: stainless steel (1.4404 / 316L); plastics: PPSU; sealing: EPDM
• Lens material PMMA
• Lens alignment Side sensing
• Tightening torque[Nm] 1; (screws)
