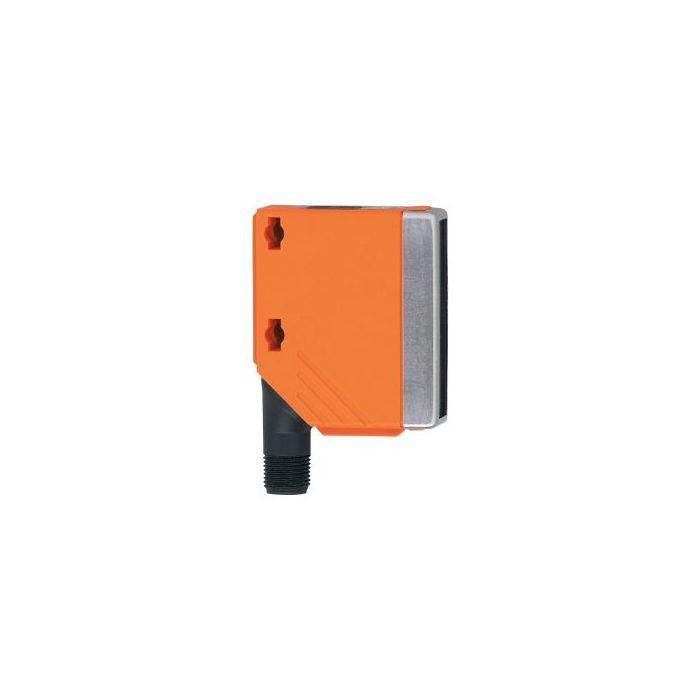

O5P700 \ efector 200 \ Photo sensor \O5PLFPKG/US100 \ DE

Details of O5P700 \ efector 200 \ Photo sensor (distance measuring sensor) \O5PLFPKG/US100 \ DE

The O5P700 \ efector 200 \ Photo sensor (distance measuring sensor) \O5PLFPKG/US100 \ DE from ifm is a reflective type with a maximum detection range of 15 meters. The sensor uses a laser beam, allowing for the detection and measurement of small objects at long distances with high accuracy. It can be installed in narrow spaces due to its straight beam path, ensuring smooth and accurate industrial production processes.

Features of O5P700 \ efector 200 \ Photo sensor (distance measuring sensor) \O5PLFPKG/US100 \ DE

• Electrical design DC PNP
• Operating voltage [V] 10...36 DC
• Current consumption [mA] 15
• Type of light Red light 655 nm
• Protection class II
• Reverse polarity protection yes
• Sensing range [m] 15 (Prismatic reflector Ø 80 (E20005))
• Smallest detectable object [mm] 3 (1 m) / 20 (15 m)
• Light spot diameter [mm] 40 ( at maximum range )
• Ambient temperature [°C] -10...60
• Protection IP 67
• Housing materials housing: PA; bezel: high-grade stainless steel; operator interface: TPU
• Lens material PMMA
• Weight [kg] 0.07
