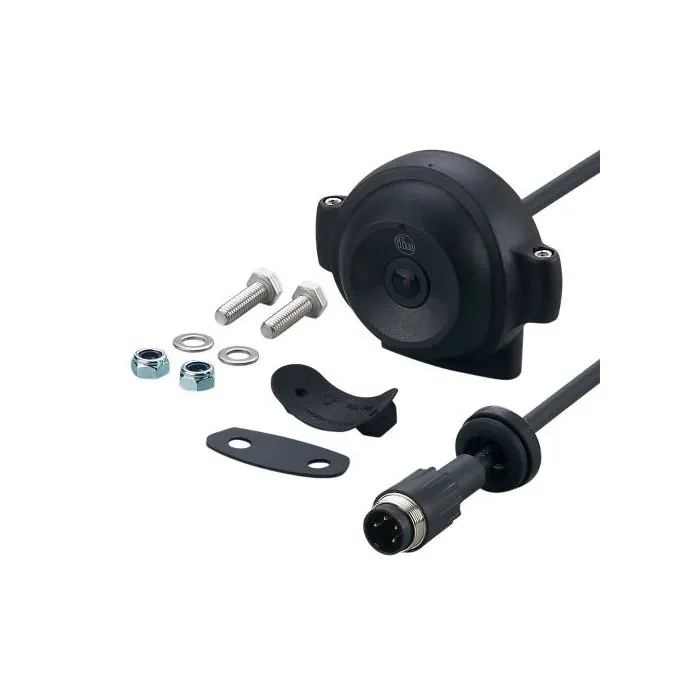

O2M200 \ efector 250 \ Mobile camera \O2MXooKG/A1/GM/78 \ NL

Details of O2M200 \ efector 250 \ Mobile camera (Camera for inspecting mobile work objects) \O2MXooKG/A1/GM/78 \ NL

O2M200 \ efector 250 \ Mobile camera (Camera for inspecting mobile work objects) \O2MXooKG/A1/GM/78 \ NL The camera from ifm offers an image resolution of 640 x 480px, providing clear and sharp images. This camera is capable of operating in temperatures ranging from -40 to 85°C, and it can withstand any environment due to its IP67 and IP69K dust and water protection standards.

Technical data O2M200 \ efector 250 \ Mobile camera (Camera for inspecting mobile work objects) \O2MXooKG/A1/GM/78 \ NL

• Image resolution[px] 640 x 480
• Angle of aperture[°] 80 x 59
• Light sensitivity[LUX] < 0.05
• Dynamic range[dB] > 80
• Special feature Screened cable
• Operating voltage[V] 12...32 DC
• Current consumption[mA] < 280; (with lens heating)
• Overvoltage protection yes
• Image sensor ¼'' 4:3 VGA CMOS image sensor Color
• Switch-on peak current[mA] 1000
• Switch-on peak current duration[ms] 2
• Weight[g] 311
• Dimensions[mm] Ø 55.5 / L = 51.3
• Materials housing: PC/ABS; front lens: polyamide glass fibre reinforced
