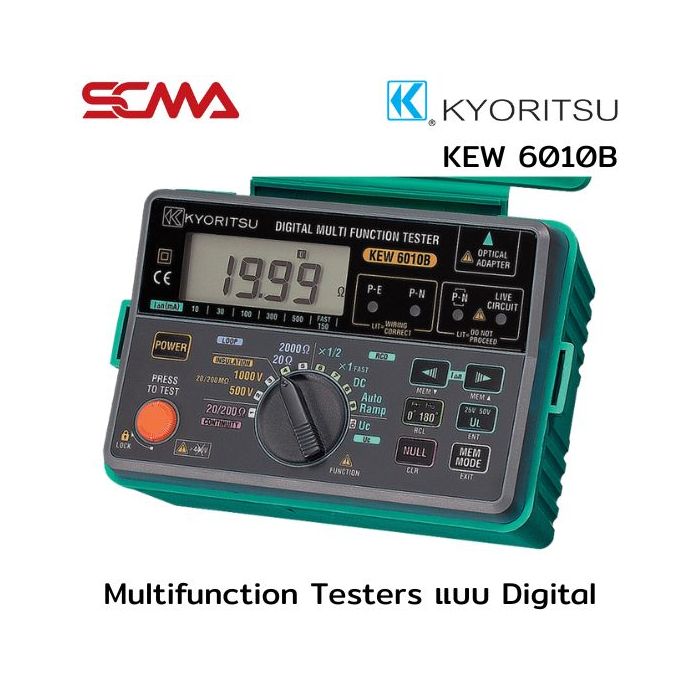

KEW 6010B Multifunction Testers Digital Type Kyoritsu

Details of KYORITSU Digital KEW 6010B Multifunction Testers (Multifunction Tester)

KYORITSU Digital KEW 6010B Multifunction Testers (Multifunction Tester) is a multifunction tester designed to IEC 61010-1, IEC 61557 standards with accurate measurements and portable size for use anywhere.

• RCD 10/30/100/300/500mA, x1/2, x1, fast circuit breaker (40ms), DC, Auto Ramp system
• Data memory capacity of 300 measured values
• Load measured data into PC via communication adapter 8212 through optical RS-232C port
• Compatible with most RCD devices available in the market (Standard, Selective, AC and A (DC sensitive breakers)) Uc (touch voltage) 100V

Metering Values of KYORITSU Digital KEW 6010B Multifunction Testers (Multifunction Tester)

• Continuity 20/200 Ω test current 200mA
• Insulation 500/1000V, 20/200M Ω test current at 1mA
• Total system resistance 20/2000 Ω test current 15mA at 2000 Ω
